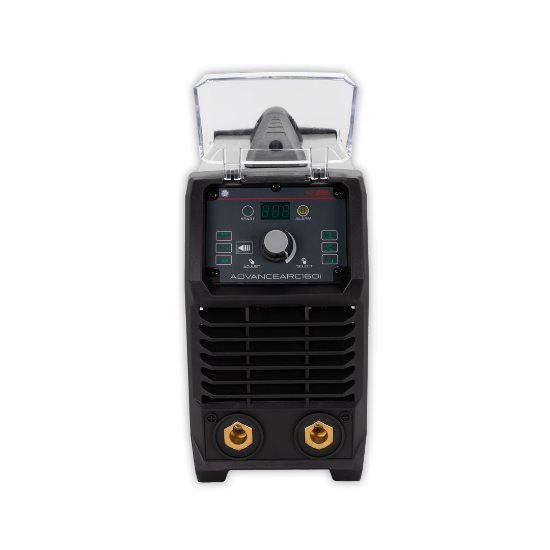

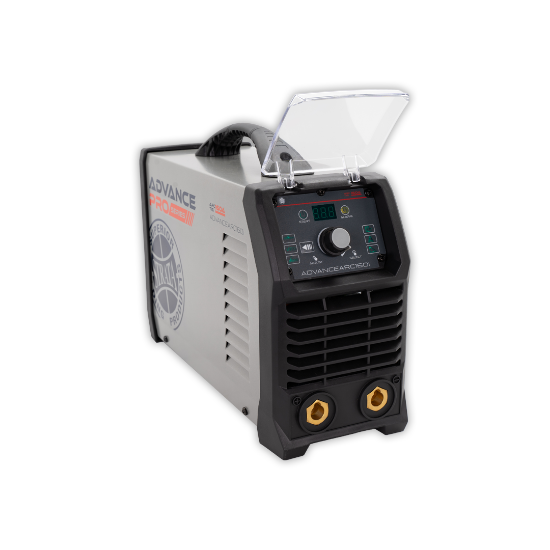

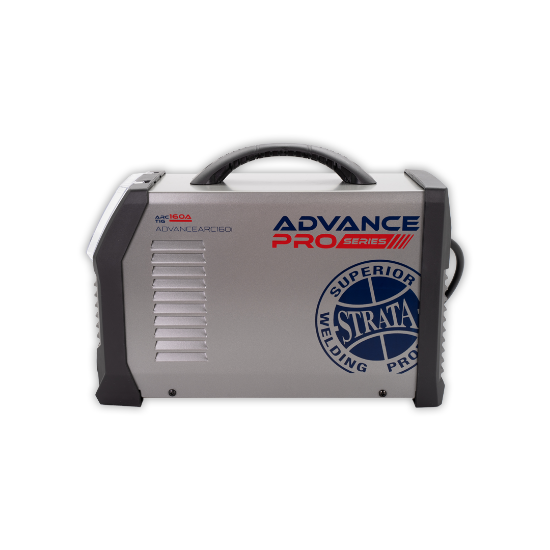

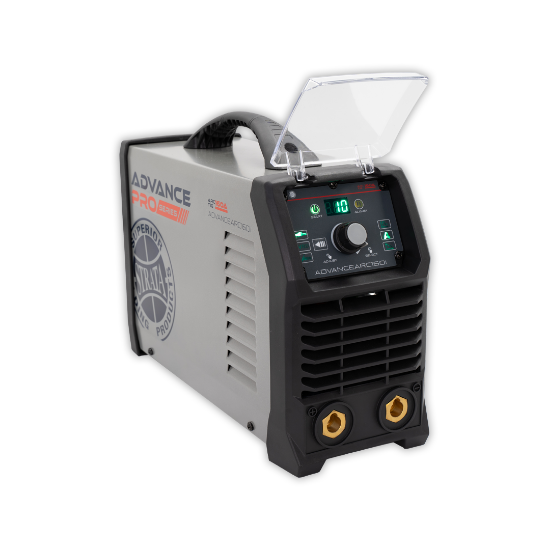

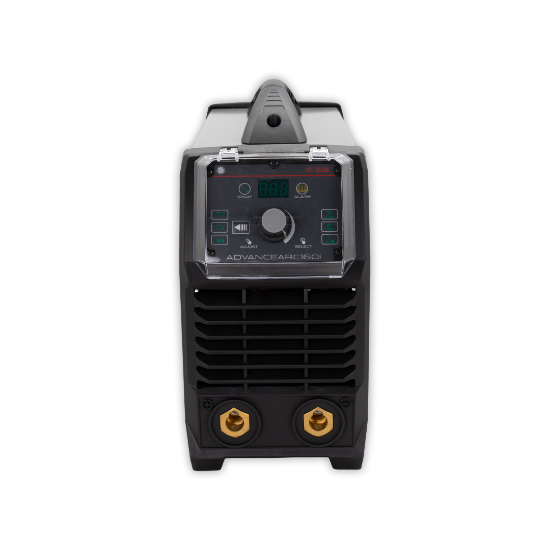

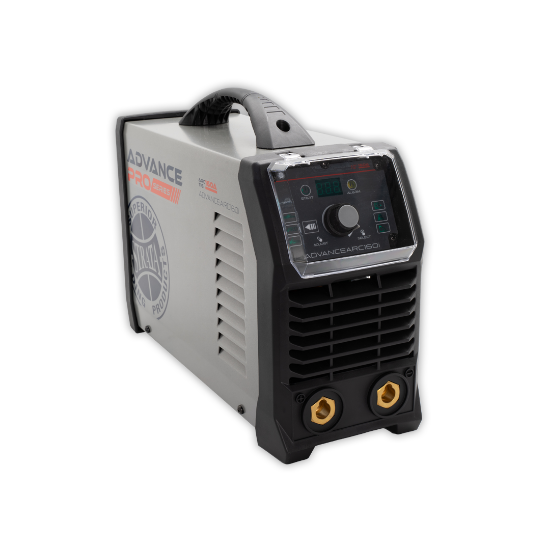

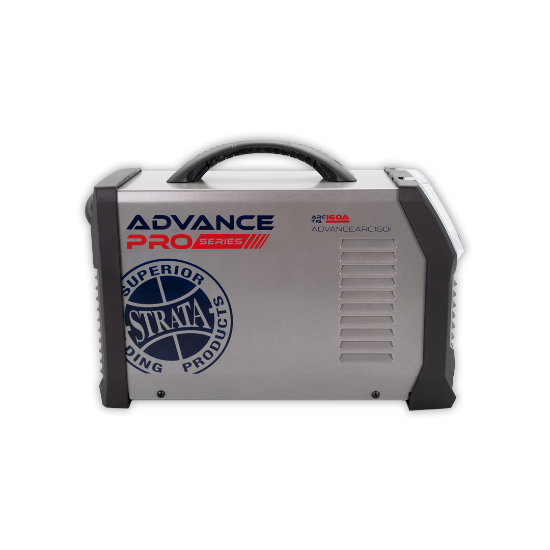

AdvanceArc160i

160A DC ARC/Lift TIG PFC Inverter Welder

The AdvanceArc160i steps up your welding game with Active PFC Technology, optimizing both duty cycle and energy efficiency. This unit is ready to perform under pressure with Multi Voltage Input capability and VRD Protection for enhanced safety. Lightweight yet durable, it provides consistent power and control, ideal for detailed TIG welding jobs and rugged MMA tasks alike.

Max Ouput (Arc) - 160A

Max Electrode Size - 4.0mm

Input Power Supply - 10A 230V

  • IGBT Inverter Technology - Smooth & stable welding output, increased reliability
  • Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
  • VRD Protection Mode - Increased Safety
  • Multi Voltage Input - Will operate with wide range of input voltage, including with long extension lead.
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Microprocessor Control System - Superior & Dynamic Arc Characteristics
  • Lightweight & Compact Design - Ideal for portable applications
  • Production tested with 440V - Extreme stress testing in production for rugged reliability.
  • Adjustable Arc Force & Hot Start - Greater control and ease of use for MMA welding.
  • Lift TIG Welding Operation - Precision and aesthetically important welding jobs
  • Digital Current Display Meter - Accurate pre-setting and feedback of welding parameters & output.
  • High Quality & Over Specified Electronic Components - Durability & Reliability
  • Intelligent Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.

The AdvanceArc160i steps up your welding game with Active PFC Technology, optimizing both duty cycle and energy efficiency. This unit is ready to perform under pressure with Multi Voltage Input capability and VRD Protection for enhanced safety. Lightweight yet durable, it provides consistent power and control, ideal for detailed TIG welding jobs and rugged MMA tasks alike.

Max Ouput (Arc) - 160A

Max Electrode Size - 4.0mm

Input Power Supply - 10A 230V

  • IGBT Inverter Technology - Smooth & stable welding output, increased reliability
  • Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
  • VRD Protection Mode - Increased Safety
  • Multi Voltage Input - Will operate with wide range of input voltage, including with long extension lead.
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Microprocessor Control System - Superior & Dynamic Arc Characteristics
  • Lightweight & Compact Design - Ideal for portable applications
  • Production tested with 440V - Extreme stress testing in production for rugged reliability.
  • Adjustable Arc Force & Hot Start - Greater control and ease of use for MMA welding.
  • Lift TIG Welding Operation - Precision and aesthetically important welding jobs
  • Digital Current Display Meter - Accurate pre-setting and feedback of welding parameters & output.
  • High Quality & Over Specified Electronic Components - Durability & Reliability
  • Intelligent Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
Attribute nameAttribute value
strata
Dimensions390x146x278mm
Weight4.5kg
Input Power Supply230V AC 10A 50/60Hz
Input Power Tolerance200-260V
Maximum Input Current22.9A
Generator Capacity6.5kVA
MMA Current Output10-160A
MMA O/C Voltage65V/ 14.5V Limited
MMA Duty Cycle160A@20%, 135A @ 60%, 105A @ 100%
Lift Tig Current Output10-160A
LiftTig Duty Cycle160A @ 35%, 135A @ 60%, 105A @ 100%
Insulation ClassIP23
MMA Rod Size1.6-4.0mm
Power Efficiency85%
Power Factor0.99
StandardsAS/ IEC60974-1:2012
Warranty48 Months
