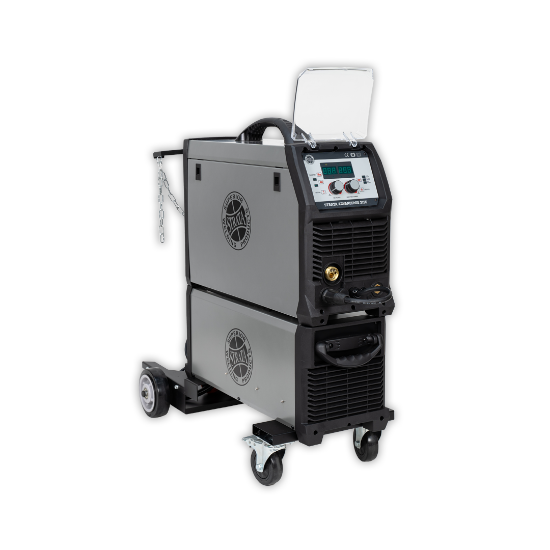

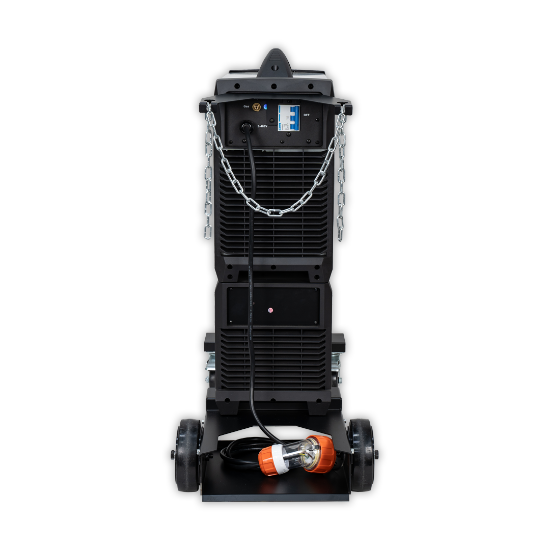

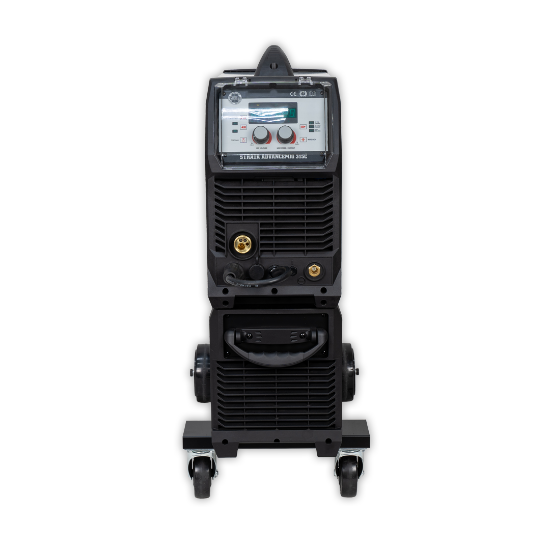

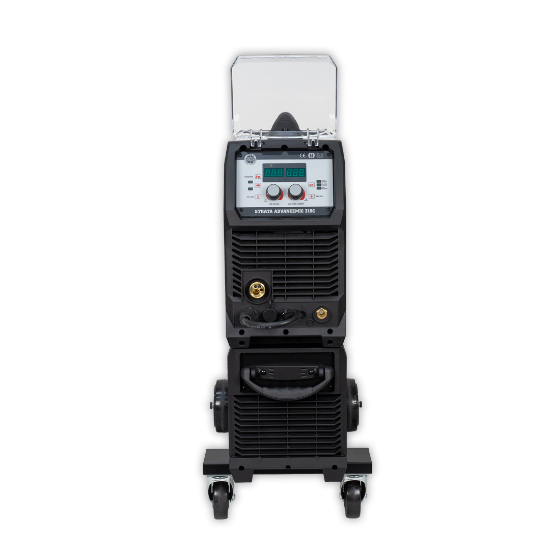

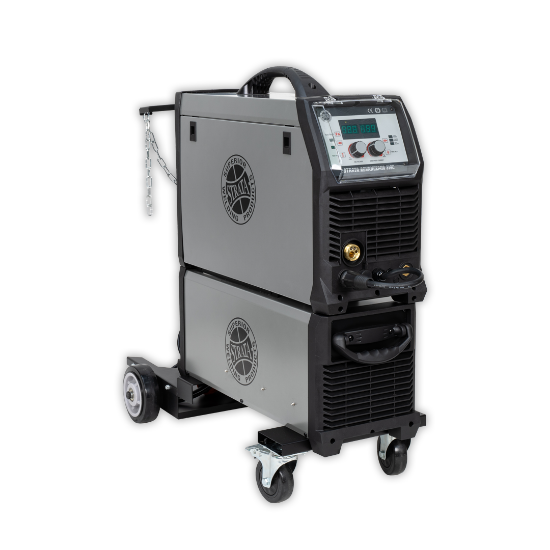

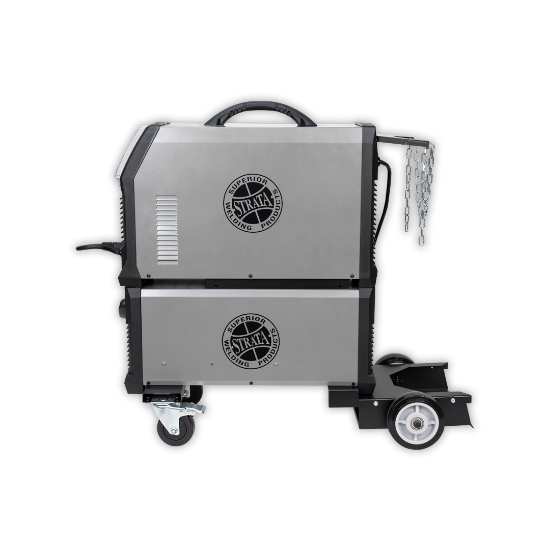

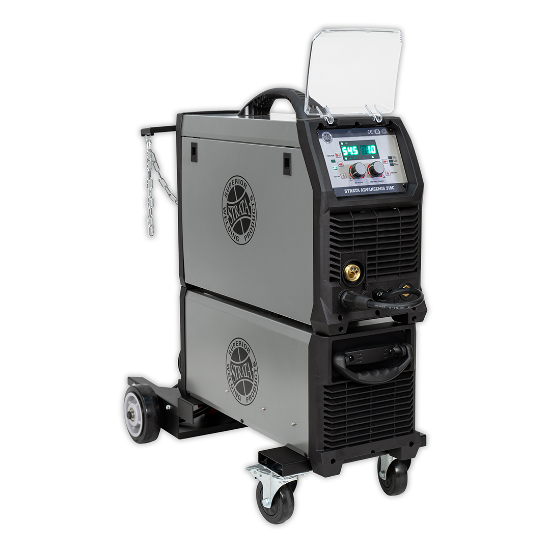

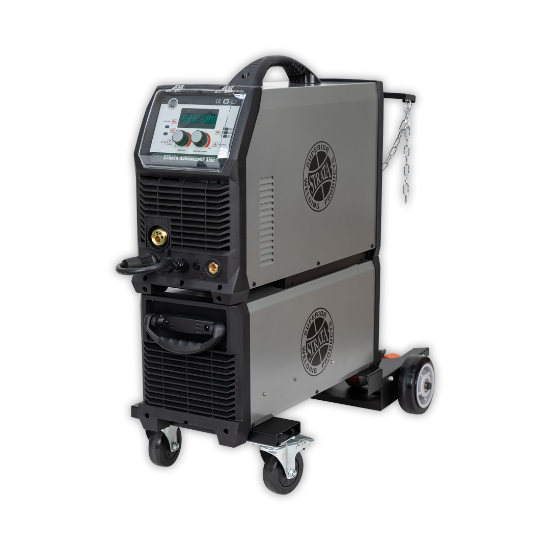

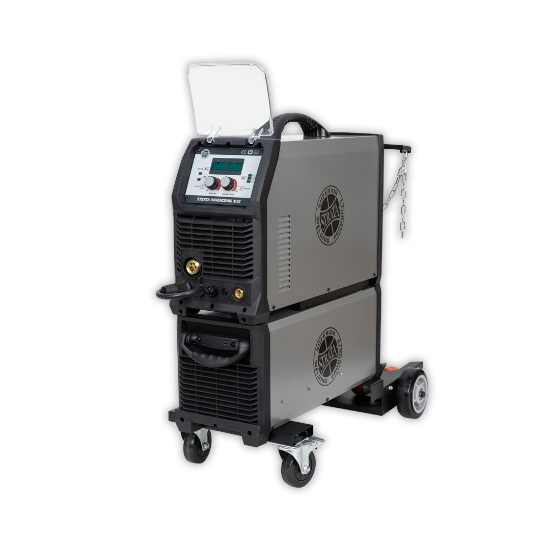

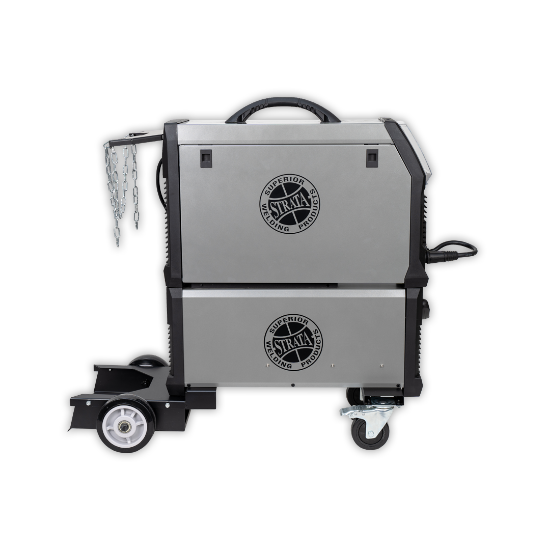

AdvanceMig315C Pack

315A Three-Phase Compact MIG/ARC Inverter Welder with Trolley & Storage

This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs. Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace. A must have for todays industrial professional.

Max Ouput (Mig) - 315A

Max Electrode Size - 6mm

Input Power Supply - 32A 400V Three Phase

  • Powerful 315A high duty cycle in a lightweight and compact design - ideal for portable applications
  • Integrated Heavy Duty Industrial Trolley and Trolley/Storage
  • IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle
  • 4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Remote control spool gun connection gives effective results welding soft wires such as aluminium
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Industrial IP23 casing with front panel protection, resits damage, moisture and corrosion.
  • Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
  • Extreme stress tested in production up to 550V ensuring rugged reliablity
  • 2T/4T trigger operation with crater control settings

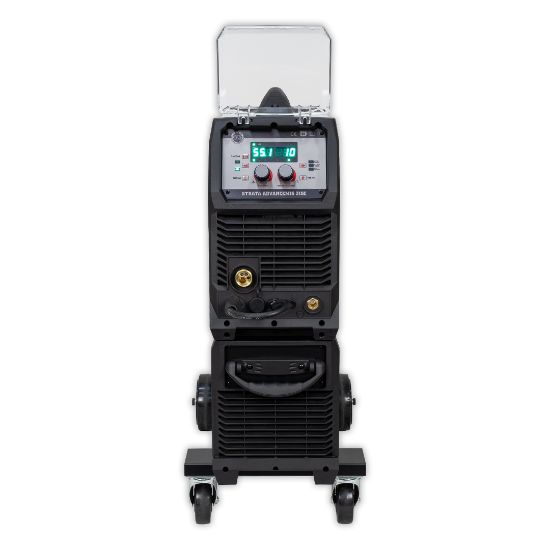

  • Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.
  • Reversible polarity MIG welding operation - suitable for gas & gasless welding.

This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs. Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace. A must have for todays industrial professional.

Max Ouput (Mig) - 315A

Max Electrode Size - 6mm

Input Power Supply - 32A 400V Three Phase

  • Powerful 315A high duty cycle in a lightweight and compact design - ideal for portable applications
  • Integrated Heavy Duty Industrial Trolley and Trolley/Storage
  • IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle
  • 4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Remote control spool gun connection gives effective results welding soft wires such as aluminium
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Industrial IP23 casing with front panel protection, resits damage, moisture and corrosion.
  • Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
  • Extreme stress tested in production up to 550V ensuring rugged reliablity
  • 2T/4T trigger operation with crater control settings
  • Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.
  • Reversible polarity MIG welding operation - suitable for gas & gasless welding.
Attribute nameAttribute value
strata
Dimensions680x240x450mm
Weight26kg
Input Power Supply400V AC 32A 3 PHASE 50/60Hz
Input Power Tolerance±20%
Maximum Input Current20A
Generator Capacity17KVA
MIG Drive Rollers Available V Groove 0.6/0.8/0.9/1.0/1.2mm Knurled: 0.8/0.9/1.0/1.2mm U Groove: 0.8/1.0/1.2mm
Mig Wire Spool SizeD200mm/D300mm 5kg/15kg
MMA O/C Voltage70V
MMA/TIG Duty Cycle315A@35% 195A@100%
StandardsEN60974-1:2012
MMA Rod Size2.4 - 6.0mm
Warranty36 months
Power Efficiency85%
Power Factor0.7
Mig Output Current15A - 315A
MIG Duty Cycle:315A @40%, 200A @100%
MMA Current Output10A - 315A
Insulation ClassIP23
Wire Feeding Speed2.4 - 18m/min
Mig Output Voltage14.8 - 30V
