AdvanceMig350 Pack

36 MONTHS WARRANTY

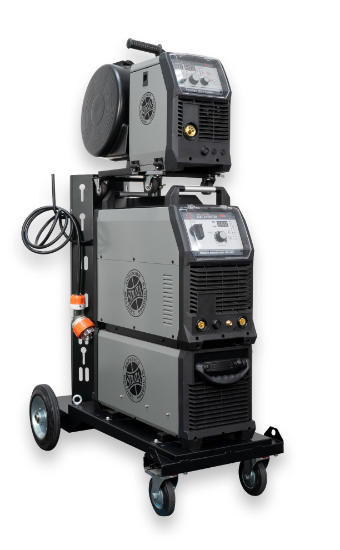

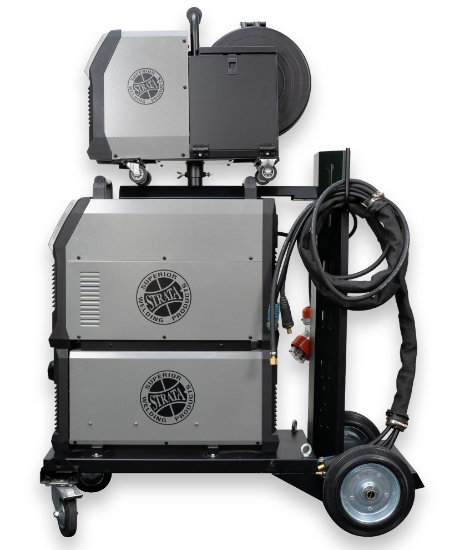

350A Three Phase Synergic Inverter MIG/ARC/TIG Welder with Industrial Trolley, Wire Feeder & Storage

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Max Output (MIG) - 350A

Max Electrode Size - 6mm

Input Power Supply - 32A 400V Three Phase

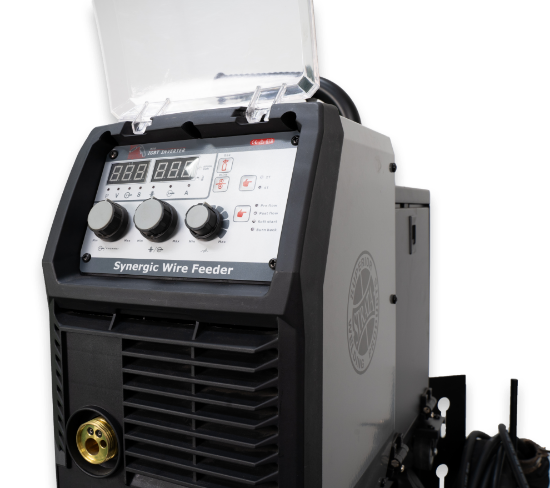

  • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
  • Digital microprocessor control system for superior & dynamic arc characteristics

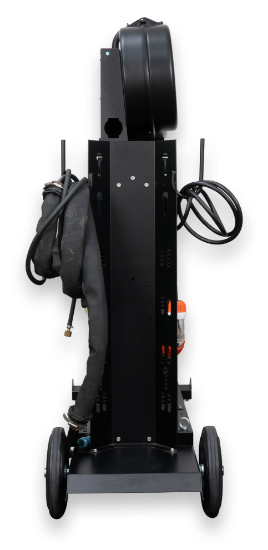

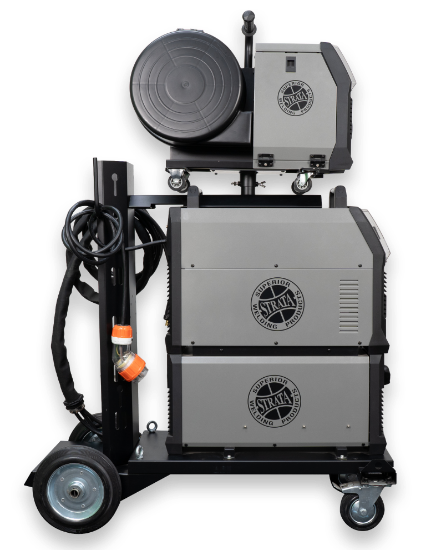

  • Optional Integrated heavy duty industrial trolley with storage compartment option
  • Optional extended 10m interconnect cable

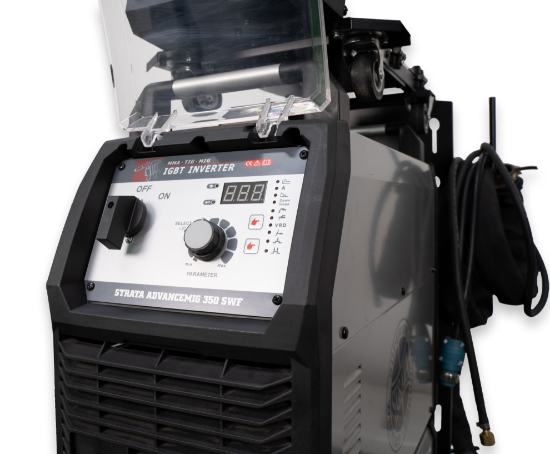

  • Modular power source can be used individually for MMA, arc air gouging and lift TIG welding
  • Synergic mig operation for optimum welding results every time
  • Lift TIG operation with down slope and remote current control
  • MIG waveform (inductance) control for great arc control and smoother welding results
  • Damage resistant Industrial casing with front panel protection
  • Wire inching and gas purge control
  • Safe and simple set up and easy to use
  • Adjustable pre flow, post flow, burn back and soft start settings
  • 2T/4T trigger operation with crater control settings
  • Adjustable arc force, hot start & automatic anti stick control
  • Dual digital display meters for accurate pre setting and feedback of welding parameters & output
  • Power source wind tunnel cooling construction
  • Protection against environmental contamination

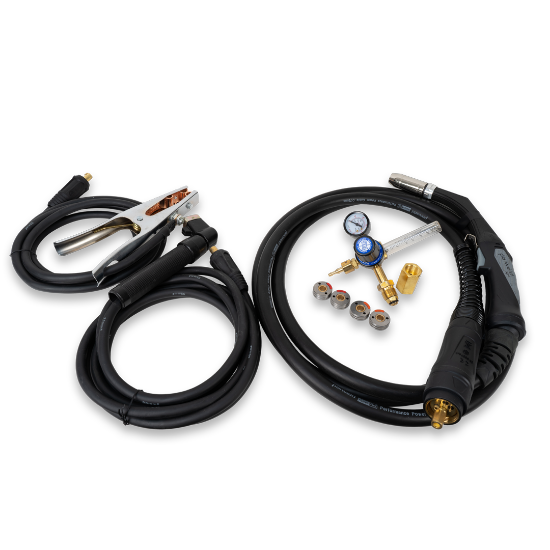

  • Includes: 3m Air Cool Interconnecting Cable, 3m Earth Lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator/CO2 Cylinder Adaptor, Gas Hose Clamp x2, Wire Drive Roller 0.8/0.9mm 'v' groove x2, Wire Drive Roller 1.0/1.2mm 'v' groove x2 & Wire Drive Roller 1.0/1.2mm flux cored x2

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Max Output (MIG) - 350A

Max Electrode Size - 6mm

Input Power Supply - 32A 400V Three Phase

  • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
  • Digital microprocessor control system for superior & dynamic arc characteristics
  • Optional Integrated heavy duty industrial trolley with storage compartment option
  • Optional extended 10m interconnect cable
  • Modular power source can be used individually for MMA, arc air gouging and lift TIG welding
  • Synergic mig operation for optimum welding results every time
  • Lift TIG operation with down slope and remote current control
  • MIG waveform (inductance) control for great arc control and smoother welding results
  • Damage resistant Industrial casing with front panel protection
  • Wire inching and gas purge control
  • Safe and simple set up and easy to use
  • Adjustable pre flow, post flow, burn back and soft start settings
  • 2T/4T trigger operation with crater control settings
  • Adjustable arc force, hot start & automatic anti stick control
  • Dual digital display meters for accurate pre setting and feedback of welding parameters & output
  • Power source wind tunnel cooling construction
  • Protection against environmental contamination
  • Includes: 3m Air Cool Interconnecting Cable, 3m Earth Lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator/CO2 Cylinder Adaptor, Gas Hose Clamp x2, Wire Drive Roller 0.8/0.9mm 'v' groove x2, Wire Drive Roller 1.0/1.2mm 'v' groove x2 & Wire Drive Roller 1.0/1.2mm flux cored x2
Attribute nameAttribute value
strata
Power Source Dimensions525x240x445mm
Weight21kg
Wire Feeder Dimensions600x290x480mm
Wire Feeder Weight 16kg
Trolley Dimensions 1050x440x1100mm
Trolley Weight 32kg
Storage Compartment Dimensions 620x240x290mm
Storage Compartment Weight 11kg
Complete Package Dimensions1050x44x1450mm
Complete Package Weight90kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Input Power Tolerance+/-10%
Maximum Input Current22A
Generator Capacity15KVA
Mig Output Voltage10V - 50V
Mig Output Current40A - 350A
MIG Duty Cycle:500A@60%, 400A@100%
Wire Feeding Speed2.4 - 18m/min
MMA Current Output40A - 500A
MMA O/C Voltage67V
TIG Current Output 40A-350A
Insulation ClassIP23
StandardsEN60974-1:2012
MMA Rod Size1.6 - 6.0mm
WarrantyCommercial 12 month extends to 36 months
Power Efficiency85%
MIG Drive Rollers Available0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm
MIG Wire spool SizeD200/D300 5KG/15KG
TIG Duty Cycle 350A@60% 275A@100%
Tig SystemInternal solenoid gas control, Lift ignition
