AdvanceMig500 Pack

36 MONTHS WARRANTY
500A Synergic Inverter MIG/MMA/TIG Welder Package

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Package Options

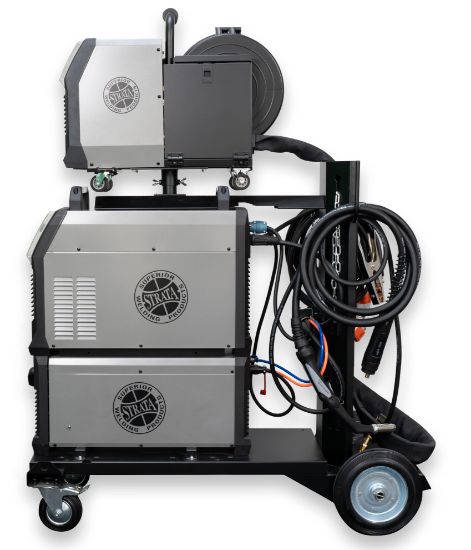

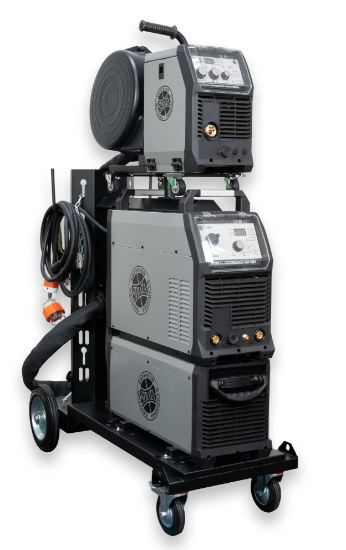

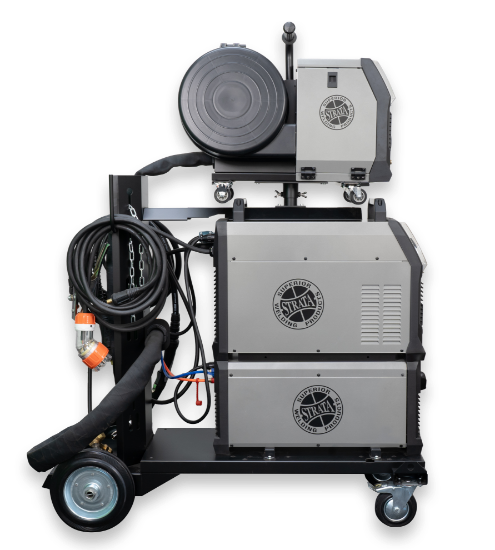

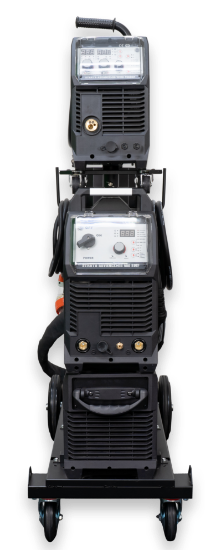

- Air Cooled: ADVANCEMIG500, Industrial Welding Trolley, Storage Unit & Wire Feeder.
- Water Cooled: ADVANCEMIG500, Industrial Welding Trolley, Water Cooler & Wire Feeder.

  • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
  • Digital microprocessor control system for superior & dynamic arc characteristics
  • Optional Integrated heavy duty industrial trolley with storage compartment option
  • Optional extended 10m interconnect cable (500A rated Water Cooled #17391) (350A rated Air Cooled #17388)
  • Modular power source can be used individually for MMA, arc air gouging and lift TIG welding (only 21kg!)
  • Synergic mig operation for optimum welding results every time
  • Lift TIG operation with down slope and remote current control (torch optional)
  • MIG waveform (inductance) control for great arc control and smoother welding results
  • Damage resistant industrial casing with front panel protection
  • Wire inching and gas purge control for safe, simple set up and ease of use
  • Adjustable pre flow, post flow, burn back and soft start settings
  • 2T/4T trigger operation with crater control settings
  • Adjustable arc force, hot start & automatic anti stick control
  • Dual digital display meters for accurate pre setting and feedback of welding parameters & output.
  • Power source wind tunnel cooling construction
  • Protection against environmental contamination.

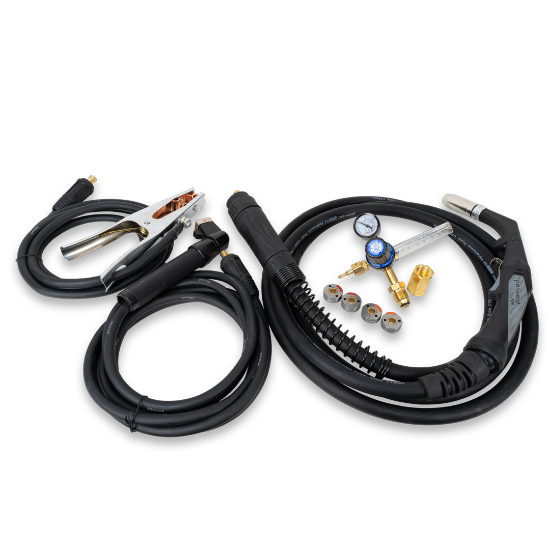

  • Includes: 3m Interconnecting Cable, 3m Earth Lead with HD earth clamp, 4m MMA lead with HD twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp x2, Wire Drive Roller 0.8/0.9mm ‘v’ groove x2, Wire Drive Roller 1.0/1.2mm ‘v’ groove x2 & Wire Drive Roller 1.2/1.6mm flux cored x2

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Package Options
- Air Cooled: ADVANCEMIG500, Industrial Welding Trolley, Storage Unit & Wire Feeder.
- Water Cooled: ADVANCEMIG500, Industrial Welding Trolley, Water Cooler & Wire Feeder.

  • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
  • Digital microprocessor control system for superior & dynamic arc characteristics
  • Optional Integrated heavy duty industrial trolley with storage compartment option
  • Optional extended 10m interconnect cable (500A rated Water Cooled #17391) (350A rated Air Cooled #17388)
  • Modular power source can be used individually for MMA, arc air gouging and lift TIG welding (only 21kg!)
  • Synergic mig operation for optimum welding results every time
  • Lift TIG operation with down slope and remote current control (torch optional)
  • MIG waveform (inductance) control for great arc control and smoother welding results
  • Damage resistant industrial casing with front panel protection
  • Wire inching and gas purge control for safe, simple set up and ease of use
  • Adjustable pre flow, post flow, burn back and soft start settings
  • 2T/4T trigger operation with crater control settings
  • Adjustable arc force, hot start & automatic anti stick control
  • Dual digital display meters for accurate pre setting and feedback of welding parameters & output.
  • Power source wind tunnel cooling construction
  • Protection against environmental contamination.
  • Includes: 3m Interconnecting Cable, 3m Earth Lead with HD earth clamp, 4m MMA lead with HD twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp x2, Wire Drive Roller 0.8/0.9mm ‘v’ groove x2, Wire Drive Roller 1.0/1.2mm ‘v’ groove x2 & Wire Drive Roller 1.2/1.6mm flux cored x2
Attribute nameAttribute value
strata
Power Source Dimensions605x240x455mm
Weight30kg
Wire Feeder Dimensions600x290x480mm
Wire Feeder Weight 16kg
Trolley Dimensions 1050x440x1100mm
Trolley Weight 32kg
Storage Compartment Dimensions 620x240x290mm
Storage Compartment Weight 11kg
Water Cooler Dimensions 620x240x290mm
Water Cooler Weight18kg
Complete Package Dimensions1050x44x1450mm
Complete Package Weight110kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Input Power Supply Tolerance±10%V
Maximum Input Current26A
Generator Capacity25KVA
Mig Output Voltage10V - 50V
Mig Output Current40A - 500A
MIG Duty Cycle:500A@60%, 400A@100%
Wire Feeding Speed2.4 - 18m/min
MMA Current Output40A - 500A
MMA O/C Voltage67V
TIG Duty Cycle 500A@60% 400A@100%
TIG Current Output 40A-500A
Insulation ClassIP23
StandardsEN60974-1:2012
MMA Rod Size1.6-4.0mm
WarrantyCommercial 12 month extends to 36 months
Power Efficiency85%
