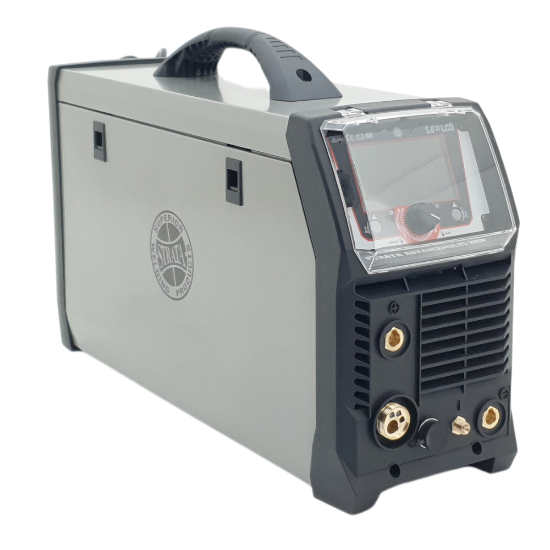

AdvanceMulti205P

200A AC/DC TIG/ARC Pulse MIG Multi-purpose Welder

Featuring the latest in welding technology, the ADVANCEMULTI205P is one machine for every job. Capable of AC TIG, DC TIG, MMA, MIG, and Pulse MIG functions, this is the ultimate 4-in-1 machine. The most versatile single-phase welder in the range. Designed tough for NZ conditions the ADVANCEMULTI205P will become your new go-to welder; perfect for the workshop or on-site maintenance.

  • One machine for every job with Advanced Multi Process Technology- AC/DC TIG, MMA, MIG, Pulse MIG functions
  • 5" Full Colour LCD Display
  • Active PFC Technology, reduced power consumption
  • Advanced TIG Functions Mix AC/DC Waveforms, Advanced Waveform Control, Advanced Spot Welding and Synergic Smart TIG Operation.
  • Lift TIG and HF Start
  • 2T/4T Plus Smart 4T Programmability and Spot Trigger Modes
  • Electronic HF Tig Arc Ignition System for low EMF interference
  • Pulse MIG Function, Manual MIG Function, Smart Synergic MIG Function and Spool Gun Connection
  • Suitable for MIG brazing with bronze wires.
  • Advanced MMA Features Pulse, AC or DC, Adjustable hot start and arc force controls
  • Multi Voltage Input, great for running off Generators and long extension leads.
  • Switchable Smart Cooling Fan Control
  • Externally upgradeable software via USB Connection (input only)
  • Accessories Include: Strata Professional PRO26 25ft TIG torch with thumbwheel remote control, Strata Professional MT250-40ER MIG Torch, 4m MMA lead with heavy duty twist lock electrode holder, 3m Earth Lead with heavy duty earth clamp, Strata 2 Stage Flowmeter Argon Gas Regulator, Argon Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, MIG Wire Drive Roller 0.6/0.8mm 'v' groove, MIG Wire Drive Roller 0.9/1.0mm 'v' groove , MIG Wire Drive Roller 0.8/0.9mm knurled' groove.

Featuring the latest in welding technology, the ADVANCEMULTI205P is one machine for every job. Capable of AC TIG, DC TIG, MMA, MIG, and Pulse MIG functions, this is the ultimate 4-in-1 machine. The most versatile single-phase welder in the range. Designed tough for NZ conditions the ADVANCEMULTI205P will become your new go-to welder; perfect for the workshop or on-site maintenance.

  • One machine for every job with Advanced Multi Process Technology- AC/DC TIG, MMA, MIG, Pulse MIG functions
  • 5" Full Colour LCD Display
  • Active PFC Technology, reduced power consumption
  • Advanced TIG Functions Mix AC/DC Waveforms, Advanced Waveform Control, Advanced Spot Welding and Synergic Smart TIG Operation.
  • Lift TIG and HF Start
  • 2T/4T Plus Smart 4T Programmability and Spot Trigger Modes
  • Electronic HF Tig Arc Ignition System for low EMF interference
  • Pulse MIG Function, Manual MIG Function, Smart Synergic MIG Function and Spool Gun Connection
  • Suitable for MIG brazing with bronze wires.
  • Advanced MMA Features Pulse, AC or DC, Adjustable hot start and arc force controls
  • Multi Voltage Input, great for running off Generators and long extension leads.
  • Switchable Smart Cooling Fan Control
  • Externally upgradeable software via USB Connection (input only)
  • Accessories Include: Strata Professional PRO26 25ft TIG torch with thumbwheel remote control, Strata Professional MT250-40ER MIG Torch, 4m MMA lead with heavy duty twist lock electrode holder, 3m Earth Lead with heavy duty earth clamp, Strata 2 Stage Flowmeter Argon Gas Regulator, Argon Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, MIG Wire Drive Roller 0.6/0.8mm 'v' groove, MIG Wire Drive Roller 0.9/1.0mm 'v' groove , MIG Wire Drive Roller 0.8/0.9mm knurled' groove.
Attribute nameAttribute value
strata
Dimension (LxWxH)675x220x430mm
Weight21kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance90V-275V AC
Maximum Input Current34A
Generator Capacity10KVA
Mig Output Current30A-200A
MMA, AC/DC TIG Current Output10-200A
MOG O/C Voltage10V-27V
MMA O/C Voltage75V
MMA Duty Cycle200A@20% 130A@60% 100A@100%
AC/DC TIG Duty Cycle200A@25% 130A@60% 100A@100%
MIG Duty Cycle:200A@25% 130A@60% 100A@100%
TIG Gas Post Flow/Pre-Flow Adjustment0-20s
TIG Pulse Frequency 0.5 - 999Hz
TIG Pulse Width Range5-95%
AC TIG WaveformSquare wave Sine wave Triangular wave Mix
AC Frequency Adjustment 50-250Hz
Insulation ClassIP23
Power Efficiency80%
Power Factor0.99
StandardsEN60974-1:2012
MMA Rod Size1.6-5.0mm
Warranty36 months
