Airforce M20 Pack

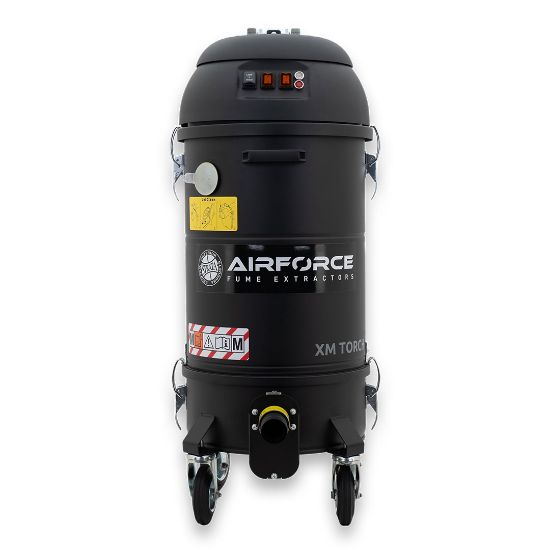

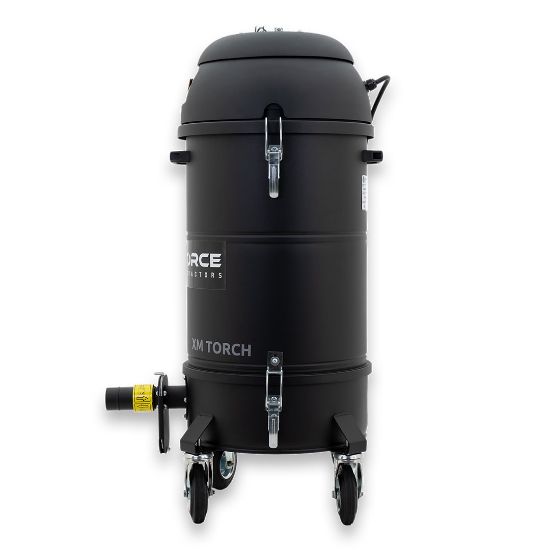

Strata Airforce M20 Twin-Motor Fume Extractor 230V

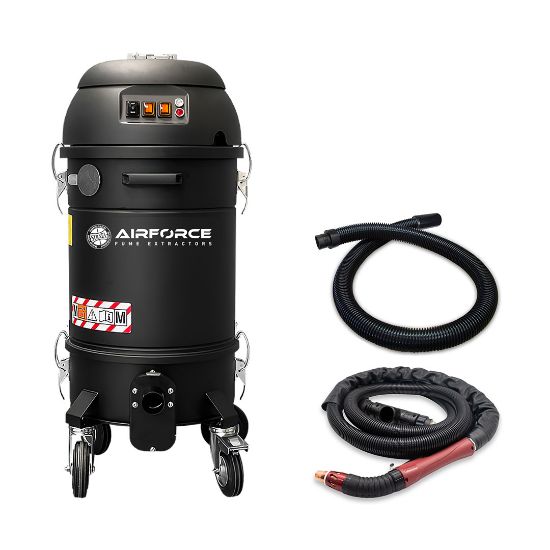

The Strata Airforce 2m industrial welding fume extractor is the ideals solution for extracting fumes directly from the welding torch. This fume extractor is equipped with two powerful by-pass motors that guarantee up to 190m3/h of airflow each. It integrates seamlessly with the welding machine, offering direct control. A sophisticated sensor on the vacuum detects current flow in the ground cable through a special clip. The Airforce M20 includes a cellulose filter for safe welding fume filtration, with an optional H14 filter available upon request.Includes a lightweight 'Ready to Use' 4.5m Strata MIG welding torch with integrated fume extraction at the nozzle, and a 5m fume hose.



  • 2400W power
  • 20L tank capacity
  • 3.5m2 surface area coverage

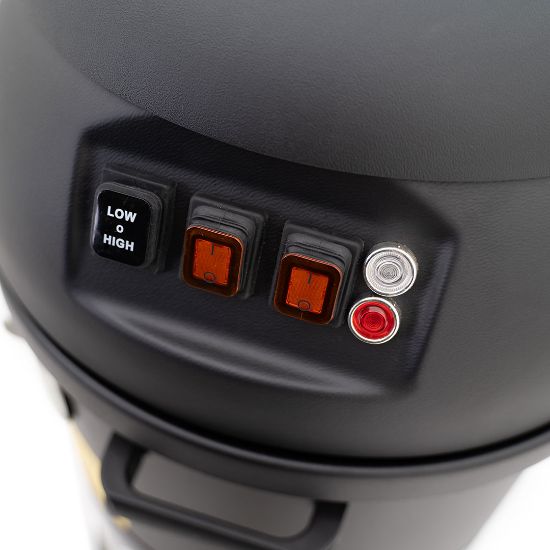

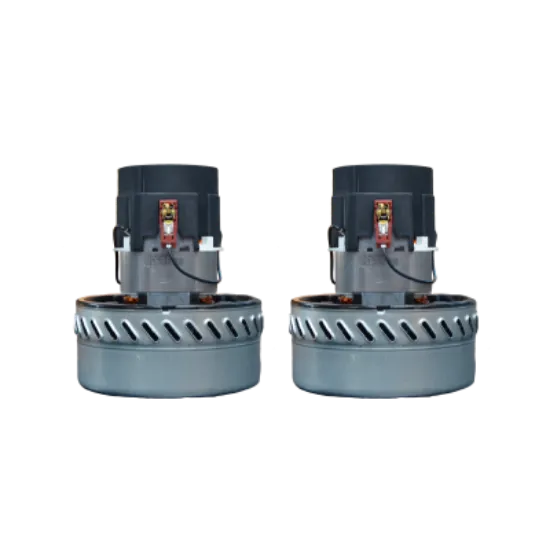

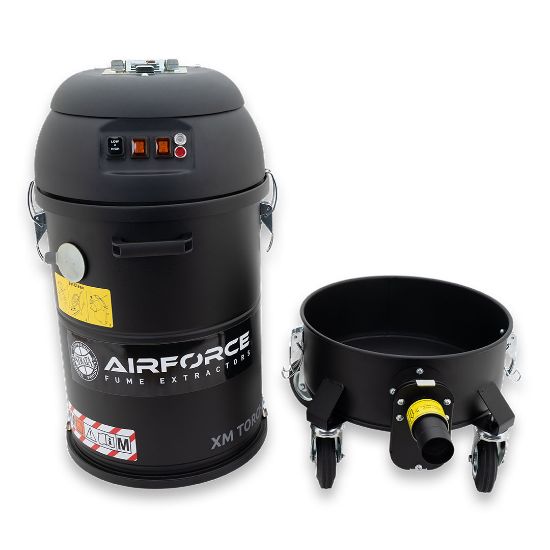

  • The vacuum is generated by two By-Pass motors, each managed by an independent switch, allowing the operator to control the intake performance
  • The motors are housed in a robust casing with an insulating sponge to ensure low noise levels
  • Filtration is ensured by a durable polyester filtering cartridge, designed to provide a large filter surface in a compact space, allowing air to pass through even when the filter is dirty

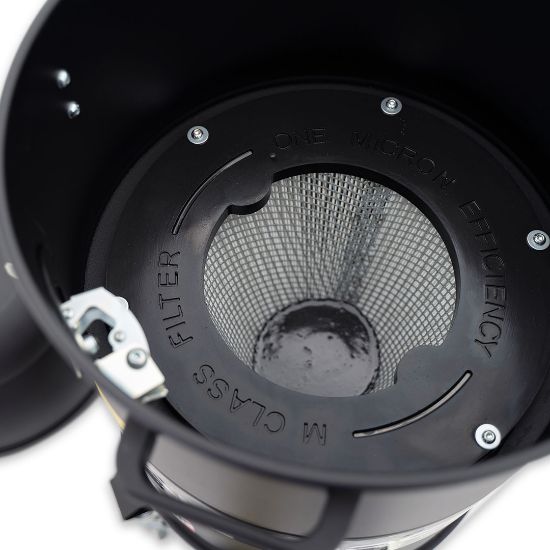

  • The M Class (BIA | EN 60335-2-69) certified filter stops particles as small as 1 micron, protecting both the motors and the operator

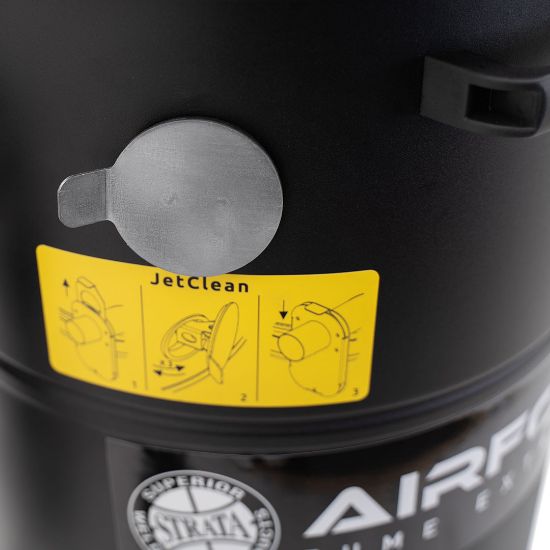

  • Equipped with the innovative JetClean® filter cleaning system, the vacuum cleaner uses pressure differences inside and outside the unit to generate an air jet that effectively detaches dust from the filter's surface
  • JetClean® filter cleaning system provides a quick and efficient way to maintain filter cleanliness during operations, allowing continuous vacuuming without interruptions

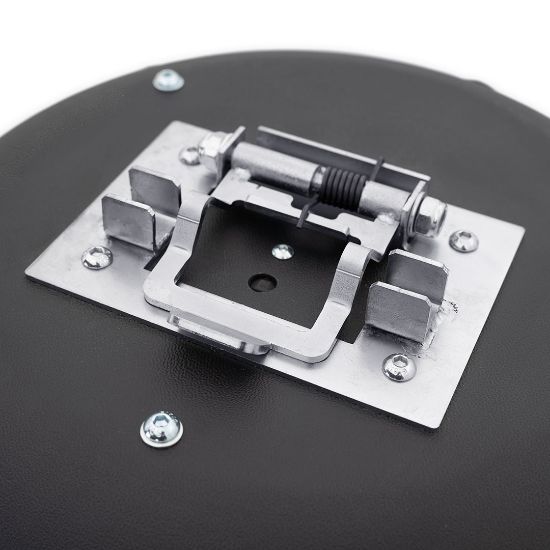

  • A sensor on the unit allows the operator to control the machine directly from the welding unit; by passing the cable through the clip, the vacuum cleaner automatically starts when welding begins, ensuring synchronized operation and convenience
  • Primary filter diameter: 305mm

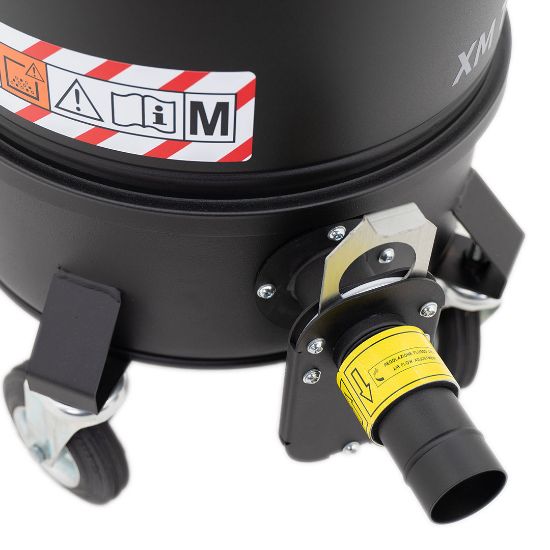

  • Suction inlet: 40mm diameter
  • Dimensions (LxWxH): 534 x 471 x 983mm
  • Weight: 38kg

The Strata Airforce 2m industrial welding fume extractor is the ideals solution for extracting fumes directly from the welding torch. This fume extractor is equipped with two powerful by-pass motors that guarantee up to 190m3/h of airflow each. It integrates seamlessly with the welding machine, offering direct control. A sophisticated sensor on the vacuum detects current flow in the ground cable through a special clip. The Airforce M20 includes a cellulose filter for safe welding fume filtration, with an optional H14 filter available upon request.Includes a lightweight 'Ready to Use' 4.5m Strata MIG welding torch with integrated fume extraction at the nozzle, and a 5m fume hose.



  • 2400W power
  • 20L tank capacity
  • 3.5m2 surface area coverage
  • The vacuum is generated by two By-Pass motors, each managed by an independent switch, allowing the operator to control the intake performance
  • The motors are housed in a robust casing with an insulating sponge to ensure low noise levels
  • Filtration is ensured by a durable polyester filtering cartridge, designed to provide a large filter surface in a compact space, allowing air to pass through even when the filter is dirty
  • The M Class (BIA | EN 60335-2-69) certified filter stops particles as small as 1 micron, protecting both the motors and the operator
  • Equipped with the innovative JetClean® filter cleaning system, the vacuum cleaner uses pressure differences inside and outside the unit to generate an air jet that effectively detaches dust from the filter's surface
  • JetClean® filter cleaning system provides a quick and efficient way to maintain filter cleanliness during operations, allowing continuous vacuuming without interruptions
  • A sensor on the unit allows the operator to control the machine directly from the welding unit; by passing the cable through the clip, the vacuum cleaner automatically starts when welding begins, ensuring synchronized operation and convenience
  • Primary filter diameter: 305mm
  • Suction inlet: 40mm diameter
  • Dimensions (LxWxH): 534 x 471 x 983mm
  • Weight: 38kg
Attribute nameAttribute value
strata
Motor type2 by-pass motors
Power (KW)2.4
Voltage | Frequency (V | Hz)230 | 50
Max vacuum (mbar)250
Max Suction (m3/hr)300
Max Air Flow(CFM)224
Noise level (dBA)72
Capacity(L)20
Dimensions(mm) length*width*height534x471x983
Weight38kg
Primary FilterClass M cartridge
Secondary filterSpark trap
Optional filterH14 Cartridge
