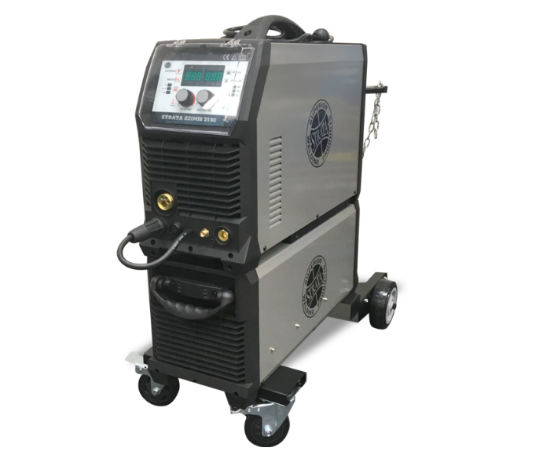

EziMig215C Pack

24 MONTHS WARRANTY
200A Compact Synergic MIG/MMA/TIG Welding Package

Ultra compact and easy to use, the EZIMIG 215C multi-process welder is a must have for todays industrial professionals. With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Package Includes: EZIMIG215C Welder & Compact Trolley with Integrated Storage Unit.

  • - Single phase, 230V, 15A input power
  • Gas and gasless wire set-up
  • Light-weight aluminium chassis
  • IP23 Industrial rated protection provides increased durability
  • Adjustable pre-flow, post-flow, burn-back and soft-start
  • Adjustable wave form (inductance) for greater arc control and smoother welding
  • Lift TIG Function (optional TIG torch Available)
  • 2T/4T trigger control
  • MIG Spot Welding Mode
  • 57 OCV for MMA welding
  • Generator friendly (10KVA)
  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Binzel style MT250-40ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and 'V' Groove MIG drive rollers(0.6-0.8mm & 0.9-1.0mm).

Ultra compact and easy to use, the EZIMIG 215C multi-process welder is a must have for todays industrial professionals. With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Package Includes: EZIMIG215C Welder & Compact Trolley with Integrated Storage Unit.

  • - Single phase, 230V, 15A input power
  • Gas and gasless wire set-up
  • Light-weight aluminium chassis
  • IP23 Industrial rated protection provides increased durability
  • Adjustable pre-flow, post-flow, burn-back and soft-start
  • Adjustable wave form (inductance) for greater arc control and smoother welding
  • Lift TIG Function (optional TIG torch Available)
  • 2T/4T trigger control
  • MIG Spot Welding Mode
  • 57 OCV for MMA welding
  • Generator friendly (10KVA)
  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Binzel style MT250-40ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and 'V' Groove MIG drive rollers(0.6-0.8mm & 0.9-1.0mm).
Attribute nameAttribute value
strata
Dimensions550x215x415mm
Weight20.5kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance230±10%V
Maximum Input Current42A
Generator Capacity10KVA
Mig Output Voltage16V-27V
Mig Output Current40-200A
MIG Duty Cycle:200A@25% 155A@60% 120A@100%
Wire Feeding Speed1.5 - 16.5m/min
MMA Current Output10A-160A
MMA O/C Voltage58V
MMA/TIG Duty Cycle160A@15% 140A@60% 110A@100%
Insulation ClassIP23
Power Efficiency85%
Power Factor0.65
StandardsEN60974-1:2012
MIG Drive Rollers Available V Groove: 0.6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
Mig Wire Spool SizeD200/D300 5kg/15kg
MMA Rod Size1.6-5.0mm
Warranty24 months
