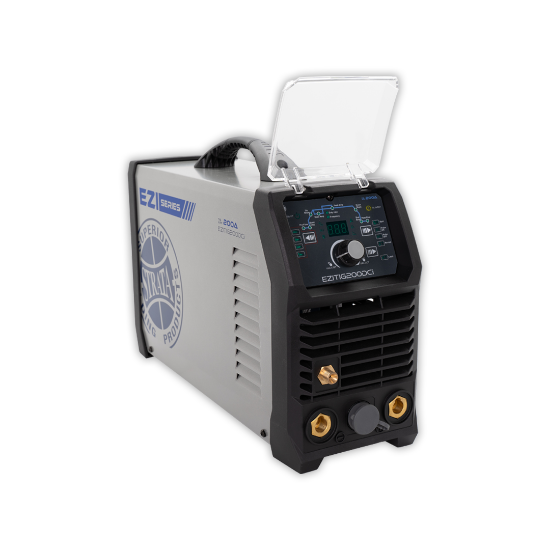

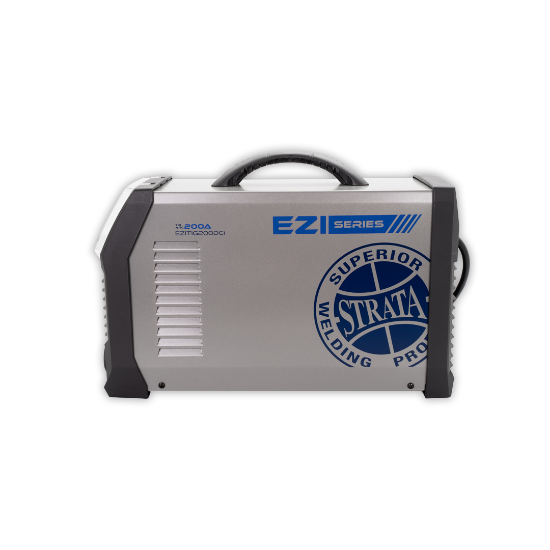

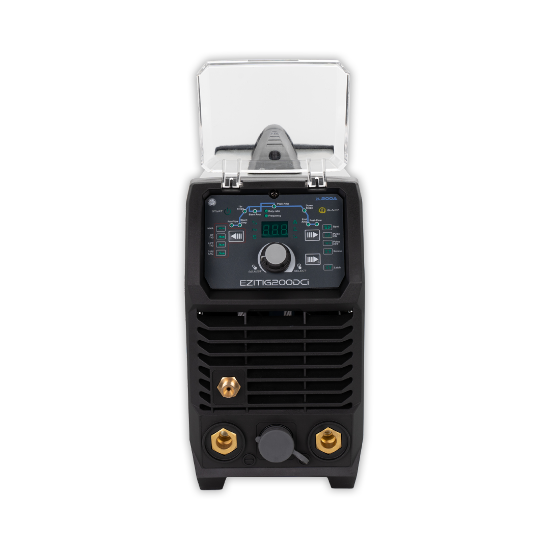

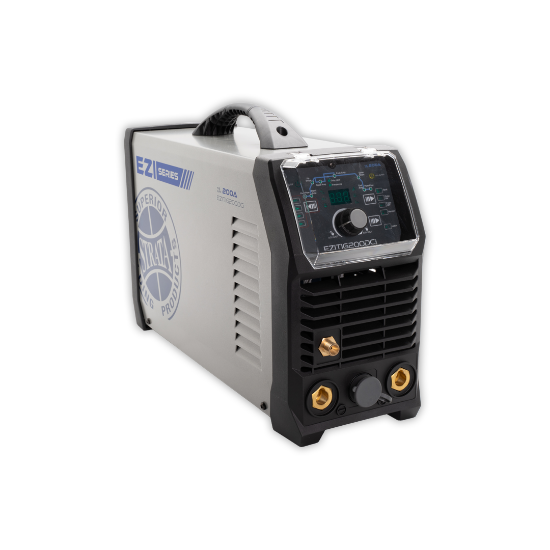

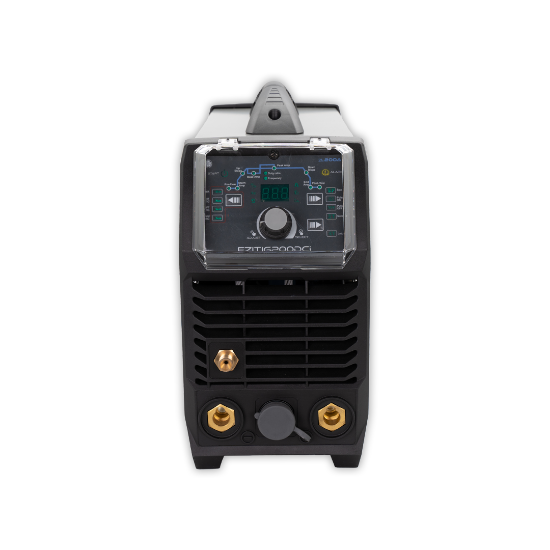

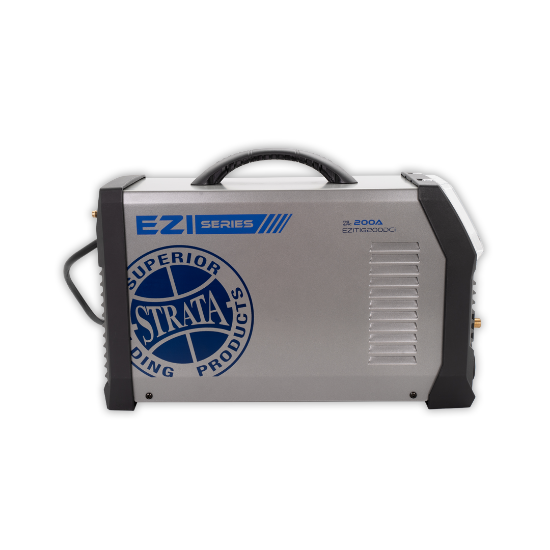

EziTig200DCi

200A DC Pulse TIG/ARC Inverter Welder

Experience the fusion of power and precision with the EziTig200DCi. This versatile TIG/ARC welder features a 200A max output and advanced IGBT Inverter Technology for stable, reliable performance. Equipped with a dual mode starting system and options for both wired and wireless foot pedal controls, it’s designed for both delicate and robust welding tasks. Ideal for professional welders who require unmatched control and efficiency on any job site.

Max Output (Tig/Arc) - 200A

Max Electrode Size - 4.0mm

Input Power Supply - 15A 230V

  • IGBT Inverter Technology - Smooth & stable welding output, increased reliability
  • Digital Microprocessor Control System - Accurate and reliable setting of control parameters
  • Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
  • Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
  • Wired & Wireless Foot Pedal Control Option (foot control optional extra)
  • Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
  • Cold Arc & Spot-Welding Modes - Designed for welding very thin material without filler rod and heat distortion
  • Lightweight & Compact Design - Ideal for portable site work applications
  • 2T/4T Trigger Control Modes
  • MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
  • Production tested with 440V - Extreme stress testing in production for rugged reliability.
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

Experience the fusion of power and precision with the EziTig200DCi. This versatile TIG/ARC welder features a 200A max output and advanced IGBT Inverter Technology for stable, reliable performance. Equipped with a dual mode starting system and options for both wired and wireless foot pedal controls, it’s designed for both delicate and robust welding tasks. Ideal for professional welders who require unmatched control and efficiency on any job site.

Max Output (Tig/Arc) - 200A

Max Electrode Size - 4.0mm

Input Power Supply - 15A 230V

  • IGBT Inverter Technology - Smooth & stable welding output, increased reliability
  • Digital Microprocessor Control System - Accurate and reliable setting of control parameters
  • Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
  • Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
  • Wired & Wireless Foot Pedal Control Option (foot control optional extra)
  • Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
  • Cold Arc & Spot-Welding Modes - Designed for welding very thin material without filler rod and heat distortion
  • Lightweight & Compact Design - Ideal for portable site work applications
  • 2T/4T Trigger Control Modes
  • MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
  • Production tested with 440V - Extreme stress testing in production for rugged reliability.
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine
Attribute nameAttribute value
strata
Dimensions410x146x278mm
Weight7kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance+/-10%
Maximum Input Current43A
Generator Capacity10KVA
MMA Current Output5A-200A
MMA O/C Voltage89V
MMA Duty Cycle200A @ 10%, 155A @ 60%, 120A @ 100%
TIG Current Output 5-200A
TIG Duty Cycle 200A @ 10%, 155A @ 60%, 120A @ 100%
TIG Upslope/Down Slope Adjustment 0-10S
TIG Gas Post Flow/Pre Flow Adjustment0-2/0-10S
TIG Pulse Frequency 0.5-200Hz
TIG Pulse Width Range5-95%
Insulation ClassIP21S
Power Efficiency85%
Power Factor0.75
StandardsAS/ IEC60974-1:2012
Warranty48 Months
