EziTig205ACDC

24 MONTHS WARRANTY

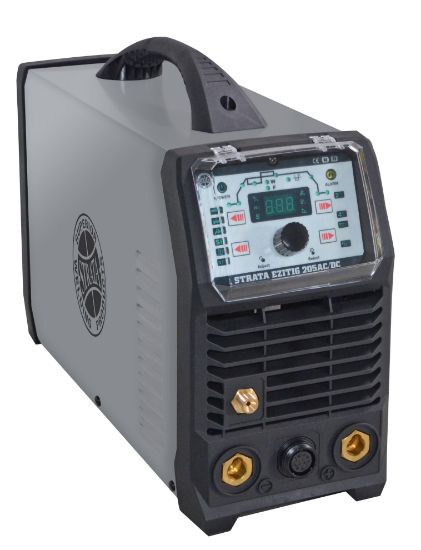

200A AC/DC Inverter TIG/MMA Welder

Powerful 230V, highly portable, easy to use machine. Extreme stress tested to 440V, with IP23 protection, the EZITIG205AC/DC is built to last in the harshest NZ work environments.

  • IGBT inverter technology for smooth & stable welding output and increased reliability
  • Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
  • Microprocessor control system for superior and dynamic arc characteristics
  • Lightweight & compact design, ideal for portable applications
  • Extreme stress tested in production up to 440V, ensuring rugged reliability
  • Great control and easy to use MMA welding with adjustable arc force, hot start and auto anti-stick control
  • Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment
  • Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference
  • Spot welding function with 2T/4T trigger control
  • Durable and reliable with high quality & over specified electronic components
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
  • Designed to work with generator power supply with protection from power surges.
  • Multi PCB construction is economical to service and repair compared to single PCB design
  • Optional Potententiometer torch/ foot pedal remote control with finger tip remote control
  • All remote functions connect through single plug 12 pin connection
  • Quick connect inlet gas fitting​

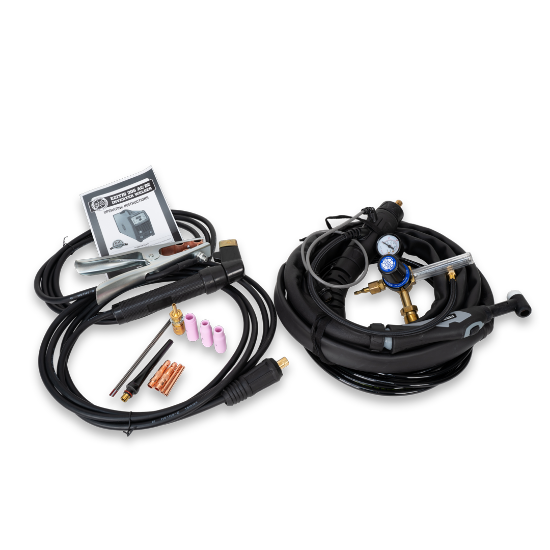

  • Includes: 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Strata Professional TIG torch, 2 stage flowmeter, Argon gas regulator, 4m gas hose, Gas inlet quick connector & Hose clamps.

Powerful 230V, highly portable, easy to use machine. Extreme stress tested to 440V, with IP23 protection, the EZITIG205AC/DC is built to last in the harshest NZ work environments.

  • IGBT inverter technology for smooth & stable welding output and increased reliability
  • Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
  • Microprocessor control system for superior and dynamic arc characteristics
  • Lightweight & compact design, ideal for portable applications
  • Extreme stress tested in production up to 440V, ensuring rugged reliability
  • Great control and easy to use MMA welding with adjustable arc force, hot start and auto anti-stick control
  • Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment
  • Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference
  • Spot welding function with 2T/4T trigger control
  • Durable and reliable with high quality & over specified electronic components
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
  • Designed to work with generator power supply with protection from power surges.
  • Multi PCB construction is economical to service and repair compared to single PCB design
  • Optional Potententiometer torch/ foot pedal remote control with finger tip remote control
  • All remote functions connect through single plug 12 pin connection
  • Quick connect inlet gas fitting​
  • Includes: 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Strata Professional TIG torch, 2 stage flowmeter, Argon gas regulator, 4m gas hose, Gas inlet quick connector & Hose clamps.
Attribute nameAttribute value
strata
Dimensions455x305x145mm
Weight8.5kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance±15%V
Maximum Input Current32A
Generator Capacity10KVA
MMA O/C Voltage52V
MMA Current Output10A-170A
MMA/TIG Duty Cycle170A@14% 140A@60%, 110A@100%
TIG Current Output 10-200A
DC TIG Duty Cycle170A@29% 140A@60% 110A@100%
Insulation ClassIP23
Power Efficiency85%
Power Factor0.7
StandardsEN60974-1:2012
MMA Rod Size1.6-4.0mm
Warranty24 months
AC Frequency60Hz
AC TIG WaveformSquare wave
TIG Upslope/Down Slope Adjustment 0-10S
TIG Gas Post Flow/Pre Flow Adjustment0-2/0-10S
TIG Pulse Frequency 0.5-200Hz
TIG Pulse Width Range5-95%
AC TIG Duty Cycle200A @ 24% 155A@60% 120A @100%
