Strata WS66 Worshop Series CNC Cutting Table

Strata WS66 Worshop Series CNC Cutting Table

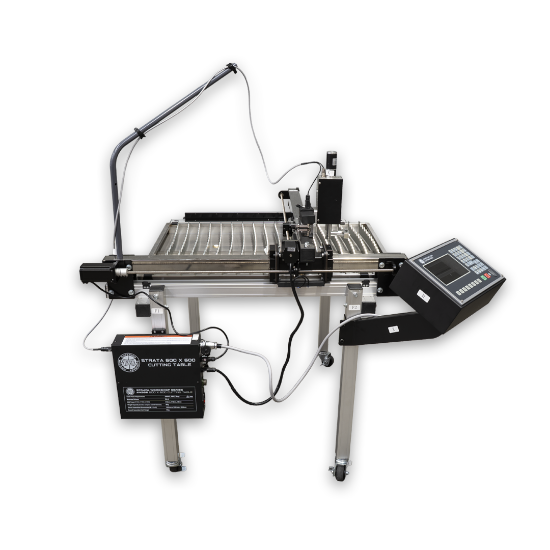

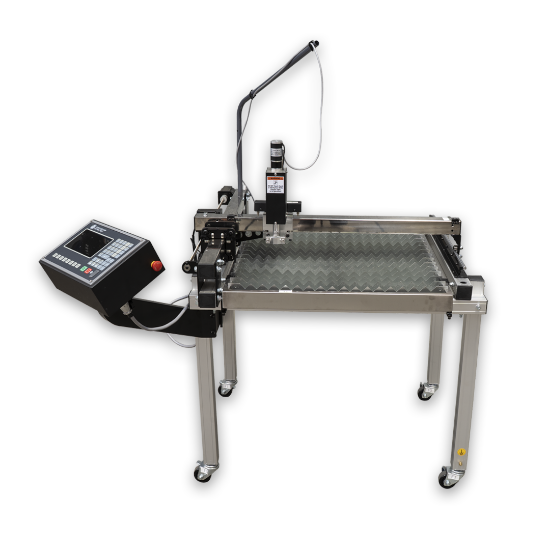

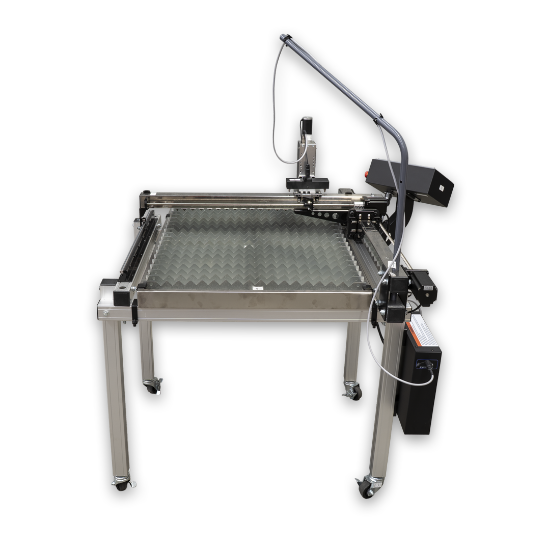

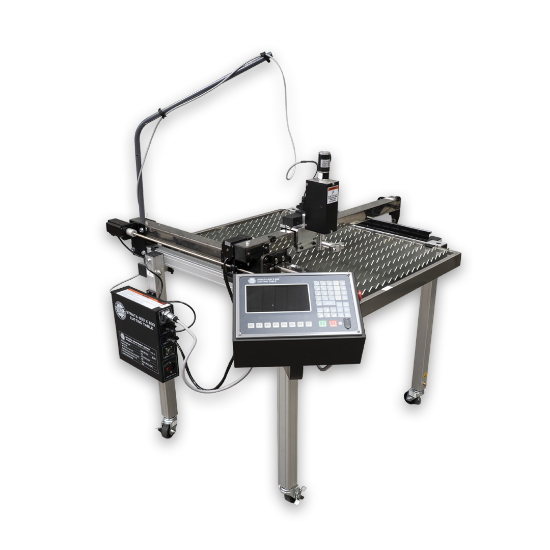

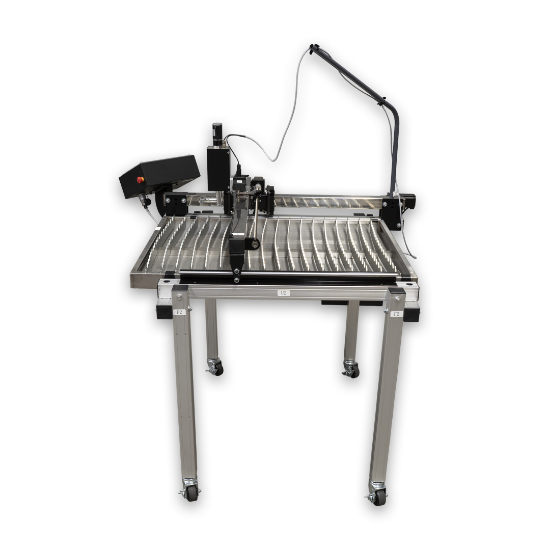

The Strata WS66 CNC Cutting Table is a compact and reliable CNC plasma cutting solution built for fabrication workshops, maintenance teams, and mobile repair applications where workshop space is limited. With a 610 x 610 mm cutting area, integrated waterbed, and lead screw drive system, the WS66 delivers smooth and accurate cutting performance for light fabrication and detailed profiling tasks.

Designed for ease of operation, the WS66 features a stand-alone CNC controller with USB input, eliminating the need for a dedicated laptop during operation. Automatic torch height control maintains consistent cut quality across varying material thicknesses, while the integrated waterbed helps minimise heat distortion, sparks, and fumes during cutting

Key Features

Lead Screw Drive System
The lead screw drive with stepper motors provides controlled axis movement with minimal backlash, improving cut precision and repeatability on detailed profiles and smaller components.

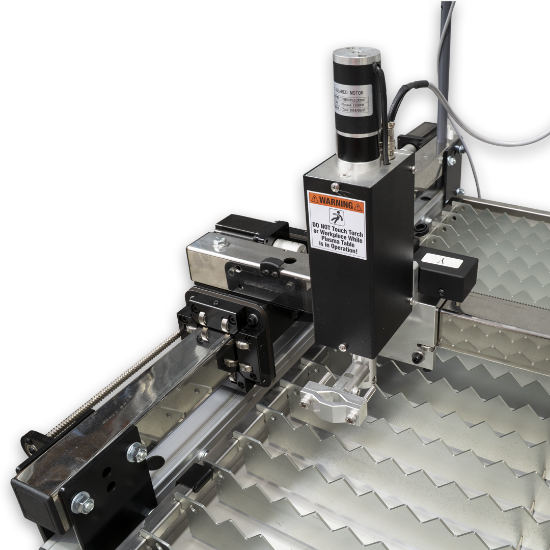

Automatic Torch Height Control (THC)
Integrated THC maintains consistent torch distance from the workpiece, improving cut quality and accuracy across uneven or varying material thicknesses.

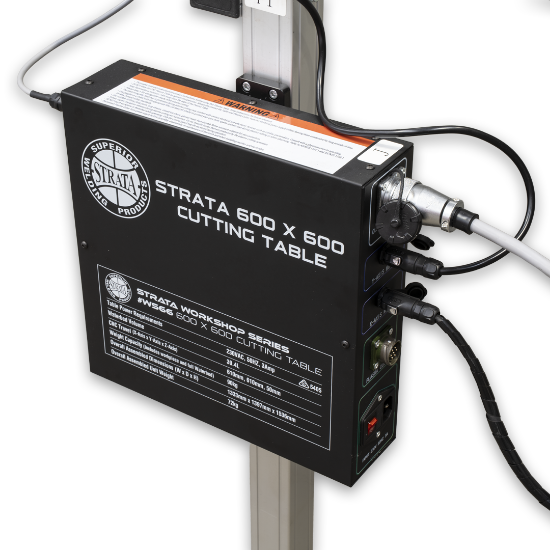

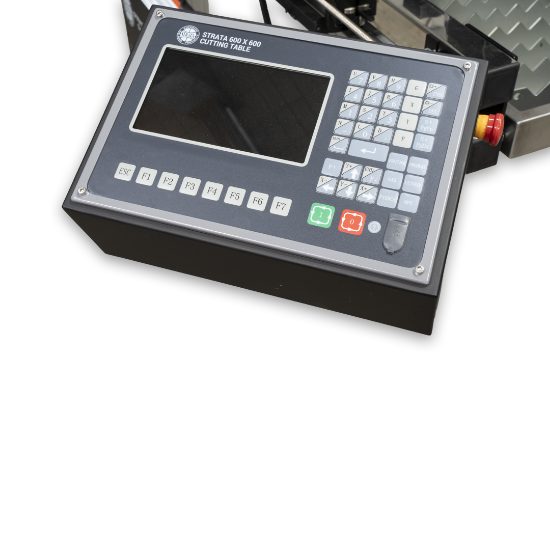

Stand-Alone CNC Controller
The built-in CNC controller with USB input allows operators to load and run jobs without a laptop, simplifying setup and improving workshop efficiency.

Integrated Waterbed System
The 39.4-litre waterbed reduces heat transfer into the plate, helping minimise warping while controlling sparks and fumes during cutting operations.

Compact Workshop Footprint
With locking castors and a compact design, the WS66 is easy to position, relocate, or store in confined workshop environments without sacrificing stability.

Accurate CNC Plasma Cutting
Delivering ±0.2 mm movement accuracy, the WS66 is ideal for light fabrication, repair work, prototype parts, and small-batch production applications.

Complete Ready-to-Assemble Package
Supplied with FLCam software, CNC controller, stepper motor drive system, torch mounting hardware, and assembly hardware for quick workshop setup.

Whats Included

• WS66 CNC Cutting Table (flat pack)
• FLCam Software
• CNC Cut Controller
• Stepper motor drive system
• Torch mounting hardware
• Integrated waterbed
• Assembly hardware
