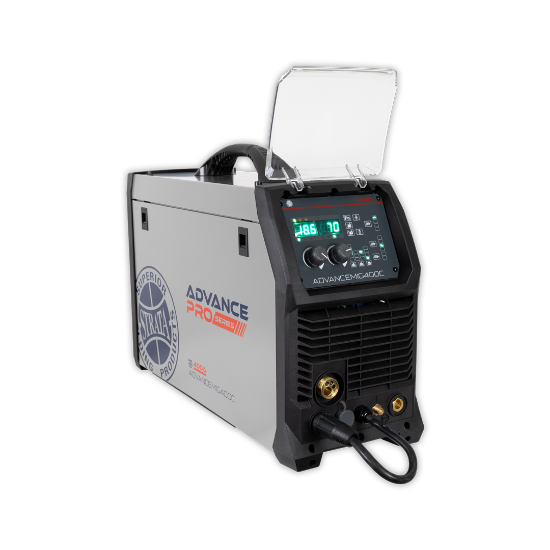

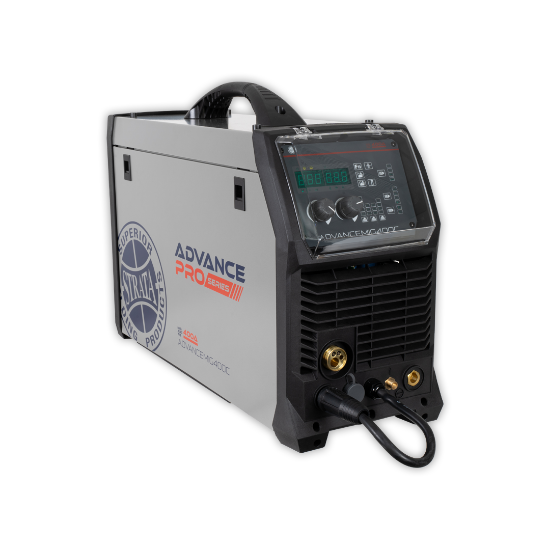

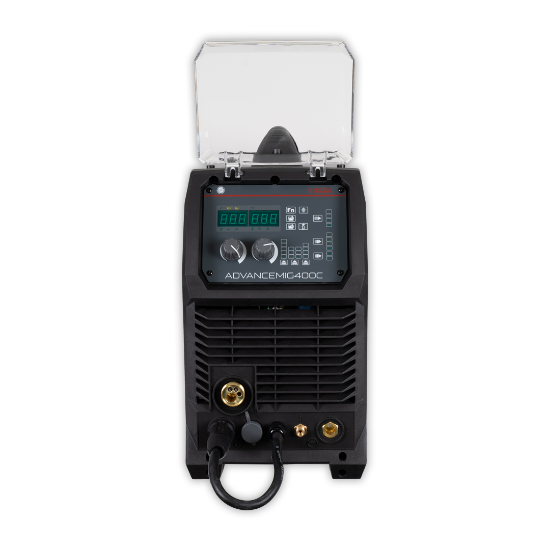

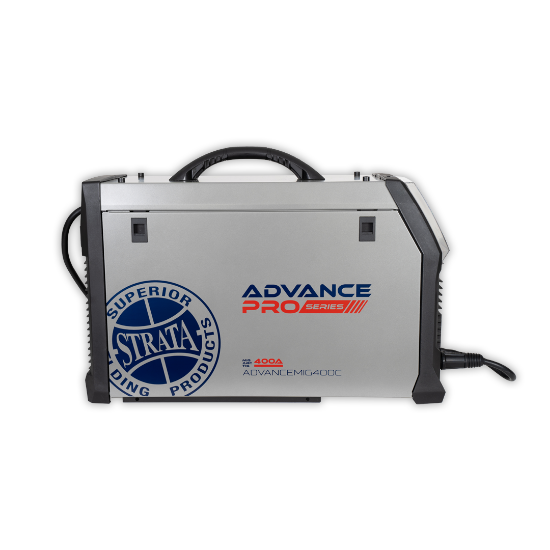

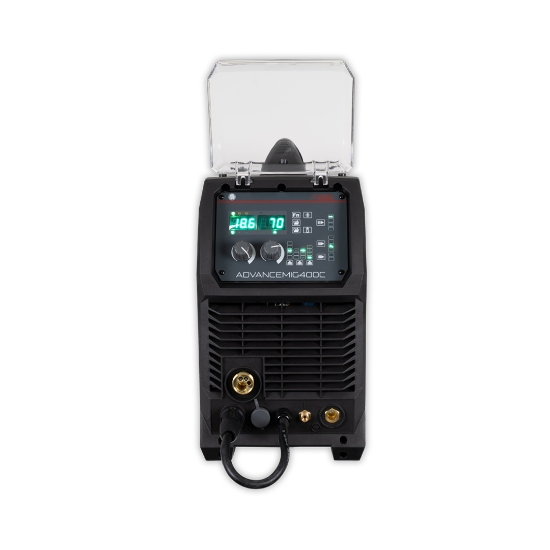

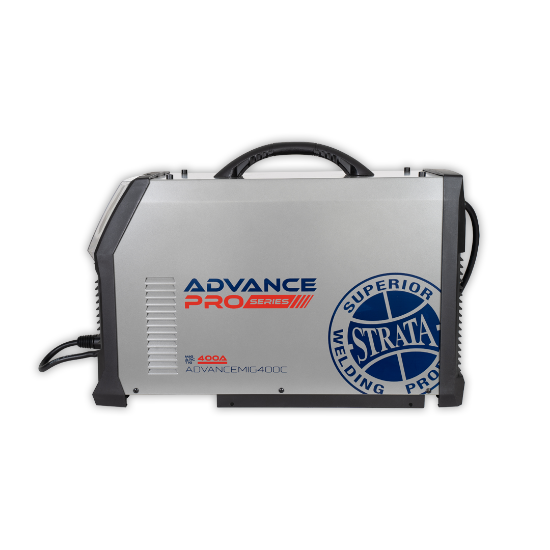

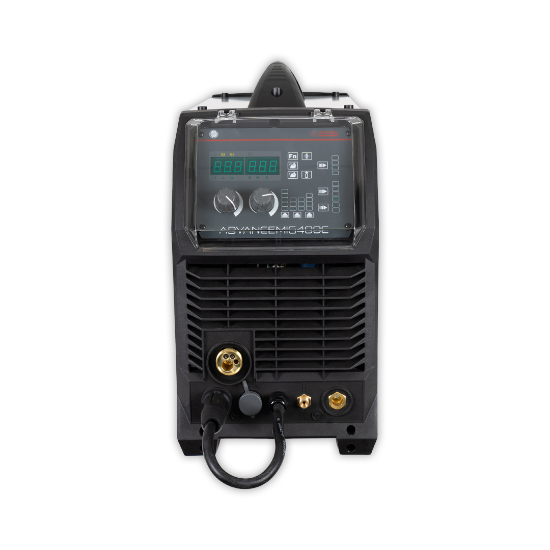

AdvanceMig400C

400A Three-Phase Compact Synergic MIG/ARC/Lift TIG Inverter Welder

Unleash unparalleled power and flexibility with the AdvanceMig400C. This formidable 400A welder comes equipped with a high-duty cycle output in a compact design, ideal for rigorous site work. It features an intelligent synergic system that effortlessly adjusts parameters to match the job's material type, wire size, and thickness. Included is a powerful 4-roll geared industrial wire feed unit, ensuring smooth and consistent wire delivery. For added versatility, it offers optional upgrades such as an integrated heavy-duty industrial trolley and storage compartments. With its robust construction and advanced protection systems, the AdvanceMig400C is engineered for durability and peak performance in challenging environments.

Also available in 2 pack versions. One with integrated trolley & storage (AdvanceMig400C Pack), one with industrial trolley & wirefeeder (AdvanceMig400C SWF Pack)

Max Output (Mig) - 400A

Max Electrode Size - 4.0mm

Input Power Supply - 400V Three Phase 32A

  • Powerful 400A high duty cycle output in a compact size - Ideal for heavy duty site work
  • Standalone machine or duplex full function separate wire feeder option - Ultimate flexibility for every job application.
  • Intelligent synergic system - Easily set parameters by material type, wire size and work thickness
  • Arc air gouging capability
  • IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle

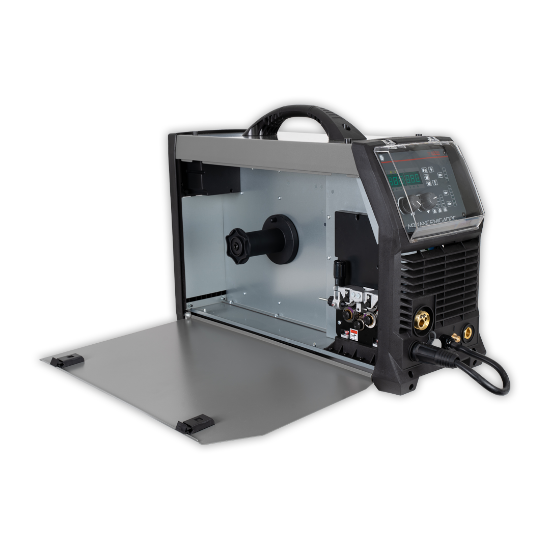

  • 4 Roll Geared Industrial Wire Feed Unit - Powerful and smooth wire feed
  • Integrated Heavy Duty Industrial Trolley Option
  • Integrated Trolley Storage Compartment Option
  • MIG Waveform (Inductance) Control - Greater control of the arc for smoother welding results
  • Adjustable secondary settings such as pre flow, post flow, burn back and soft start - Greater control for MIG welding operation
  • 2T/4T/ Bi - Level, Spot Weld Trigger Modes
  • Lift TIG operation with down slope and remote current control ability
  • Remote Control Spool Gun Connection - Effective results welding with soft wires such as Aluminium. Suitable for MIG brazing with bronze wires.
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Production tested with 550V - Extreme stress testing in production for rugged reliability.
  • Intelligent Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
  • Power Source Wind Tunnel Cooling Construction - Protection against environmental contamination
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

Unleash unparalleled power and flexibility with the AdvanceMig400C. This formidable 400A welder comes equipped with a high-duty cycle output in a compact design, ideal for rigorous site work. It features an intelligent synergic system that effortlessly adjusts parameters to match the job's material type, wire size, and thickness. Included is a powerful 4-roll geared industrial wire feed unit, ensuring smooth and consistent wire delivery. For added versatility, it offers optional upgrades such as an integrated heavy-duty industrial trolley and storage compartments. With its robust construction and advanced protection systems, the AdvanceMig400C is engineered for durability and peak performance in challenging environments.

Also available in 2 pack versions. One with integrated trolley & storage (AdvanceMig400C Pack), one with industrial trolley & wirefeeder (AdvanceMig400C SWF Pack)

Max Output (Mig) - 400A

Max Electrode Size - 4.0mm

Input Power Supply - 400V Three Phase 32A

  • Powerful 400A high duty cycle output in a compact size - Ideal for heavy duty site work
  • Standalone machine or duplex full function separate wire feeder option - Ultimate flexibility for every job application.
  • Intelligent synergic system - Easily set parameters by material type, wire size and work thickness
  • Arc air gouging capability
  • IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle
  • 4 Roll Geared Industrial Wire Feed Unit - Powerful and smooth wire feed
  • Integrated Heavy Duty Industrial Trolley Option
  • Integrated Trolley Storage Compartment Option
  • MIG Waveform (Inductance) Control - Greater control of the arc for smoother welding results
  • Adjustable secondary settings such as pre flow, post flow, burn back and soft start - Greater control for MIG welding operation
  • 2T/4T/ Bi - Level, Spot Weld Trigger Modes
  • Lift TIG operation with down slope and remote current control ability
  • Remote Control Spool Gun Connection - Effective results welding with soft wires such as Aluminium. Suitable for MIG brazing with bronze wires.
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Production tested with 550V - Extreme stress testing in production for rugged reliability.
  • Intelligent Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
  • Power Source Wind Tunnel Cooling Construction - Protection against environmental contamination
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine
Attribute nameAttribute value
strata
Power Source Dimensions670 x 250 x 445mm
Weight23kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Input Power Tolerance±20%
Maximum Input Current30A
Generator Capacity20kVA
Mig Output Current40-400A
Mig Output Voltage16V-34V
MMA O/C Voltage67V
MIG Duty Cycle:400A @ 60%, 310A @ 100%
Wire Feeding Speed2.4 - 18m/min
MMA Current Output10-400A
MMA Duty Cycle400A @ 60%, 310A @ 100A
TIG Current Output 10-400A
TIG Duty Cycle 400A @ 60%, 310A @ 100A
Tig SystemInternal solenoid gas control, Lift ignition
MIG Drive Rollers Available V Groove 0.6/0.8/0.9/1.0/1.2mm Knurled: 0.8/0.9/1.0/1.2mm U Groove: 0.8/1.0/1.2mm
Insulation ClassIP23
Mig Wire Spool SizeD200/D300 5kg/15kg
Power Efficiency80%
Power Factor0.7
StandardsAS/ IEC60974-1:2012
Warranty48 Months
