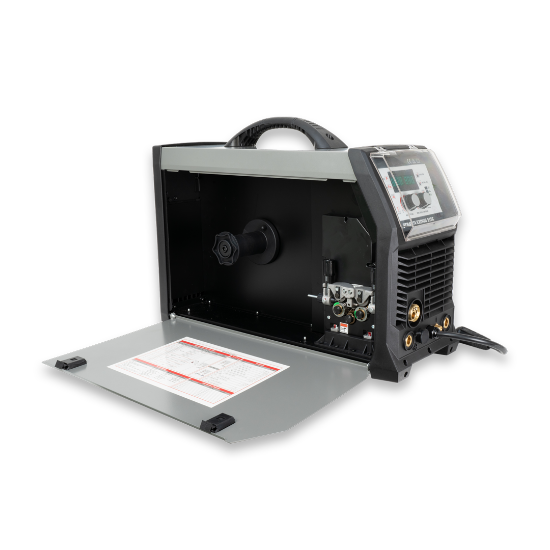

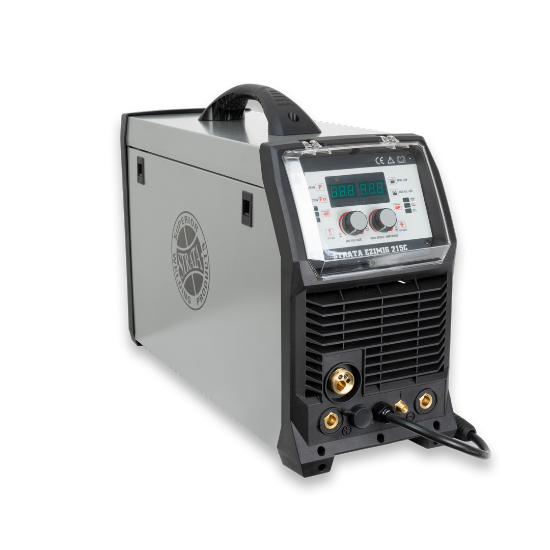

EziMig215C

24 MONTHS WARRANTY

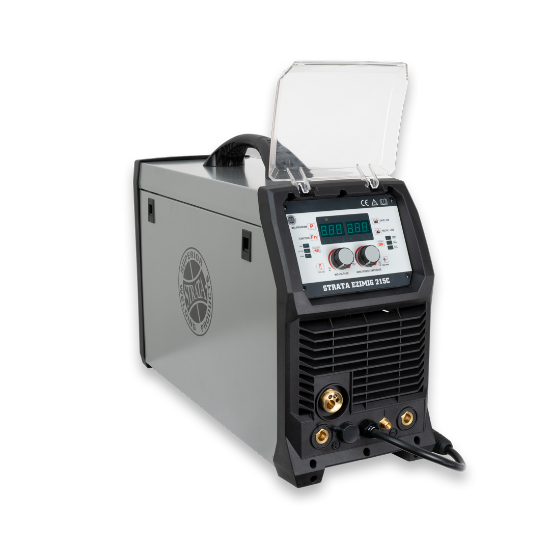

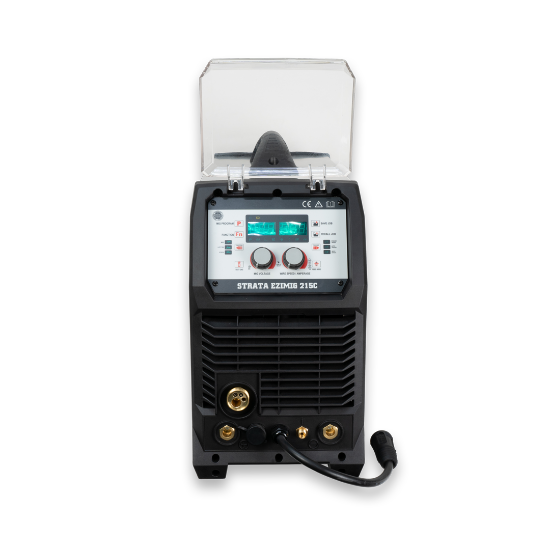

200A Compact Synergic MIG/ARC Inverter Welder

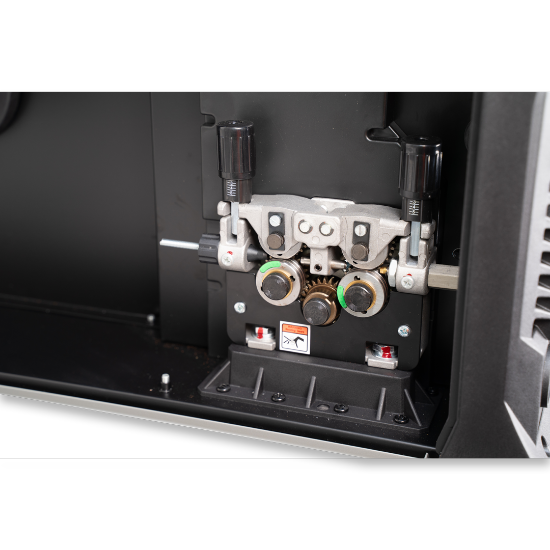

Experience top-tier welding with the Ezimig215C, a powerhouse packed into a compact design. Offering up to 200A for MIG applications, this welder ensures smooth and stable output with advanced IGBT technology. Designed for maximum control and efficiency, it features adjustable inductance, spot weld triggering, and a professional wire feeder for flawless wire delivery. Lightweight yet durable, it's perfect for dynamic site requirements or workshop tasks, ensuring reliability where it counts.

Also available as a package with trolley & integrated storage, see EziMig215C Pack

Max Ouput (Mig) - 200A

Max Weld Thickness - 10mm Steel

Input Power Supply - 15A 230V

  • Single phase, 230V, 15A input power
  • Gas and gasless wire set-up
  • Light-weight aluminium chassis
  • IP23 Industrial rated protection provides increased durability
  • Adjustable pre-flow, post-flow, burn-back and soft-start
  • Adjustable wave form (inductance) for greater arc control and smoother welding
  • Lift TIG Function (optional TIG torch Available)
  • 2T/4T trigger control
  • MIG Spot Welding Mode
  • 57 OCV for MMA welding
  • Generator friendly (10KVA)

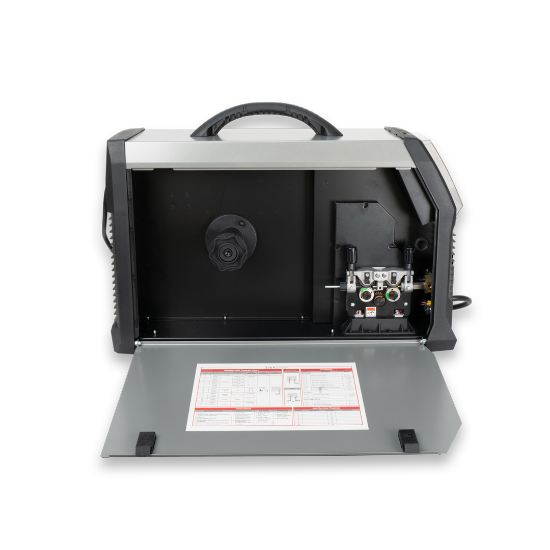

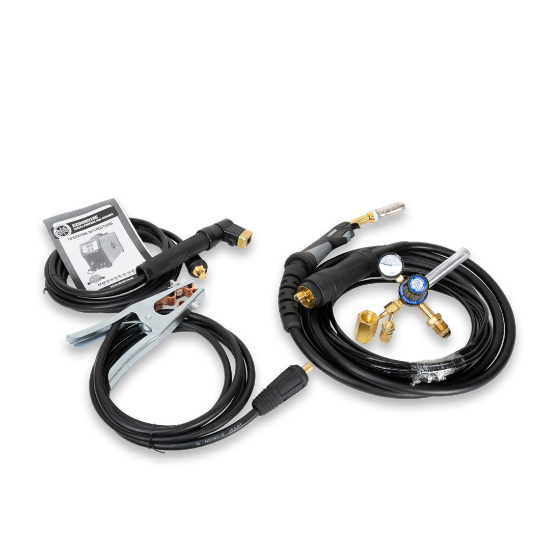

  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Binzel style MT250-40ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and 'V' Groove MIG drive rollers(0.6-0.8mm & 0.9-1.0mm).

Experience top-tier welding with the Ezimig215C, a powerhouse packed into a compact design. Offering up to 200A for MIG applications, this welder ensures smooth and stable output with advanced IGBT technology. Designed for maximum control and efficiency, it features adjustable inductance, spot weld triggering, and a professional wire feeder for flawless wire delivery. Lightweight yet durable, it's perfect for dynamic site requirements or workshop tasks, ensuring reliability where it counts.

Also available as a package with trolley & integrated storage, see EziMig215C Pack

Max Ouput (Mig) - 200A

Max Weld Thickness - 10mm Steel

Input Power Supply - 15A 230V

  • Single phase, 230V, 15A input power
  • Gas and gasless wire set-up
  • Light-weight aluminium chassis
  • IP23 Industrial rated protection provides increased durability
  • Adjustable pre-flow, post-flow, burn-back and soft-start
  • Adjustable wave form (inductance) for greater arc control and smoother welding
  • Lift TIG Function (optional TIG torch Available)
  • 2T/4T trigger control
  • MIG Spot Welding Mode
  • 57 OCV for MMA welding
  • Generator friendly (10KVA)
  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, Binzel style MT250-40ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and 'V' Groove MIG drive rollers(0.6-0.8mm & 0.9-1.0mm).
Attribute nameAttribute value
strata
Dimensions550x215x415mm
MMA O/C Voltage58V
Weight20.5kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance230±10%V
Maximum Input Current42A
Generator Capacity10KVA
Mig Output Voltage16V-27V
Mig Output Current40-200A
MIG Duty Cycle:200A@25% 155A@60% 120A@100%
Wire Feeding Speed1.5 - 16.5m/min
MMA Current Output10A-160A
MMA/TIG Duty Cycle160A@15% 140A@60% 110A@100%
Insulation ClassIP23
Power Efficiency85%
Power Factor0.65
StandardsEN60974-1:2012
MIG Drive Rollers Available V Groove: 0.6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
Mig Wire Spool SizeD200mm/ D300mm 15KG
MMA Rod Size1.6-5.0mm
Warranty24 months
