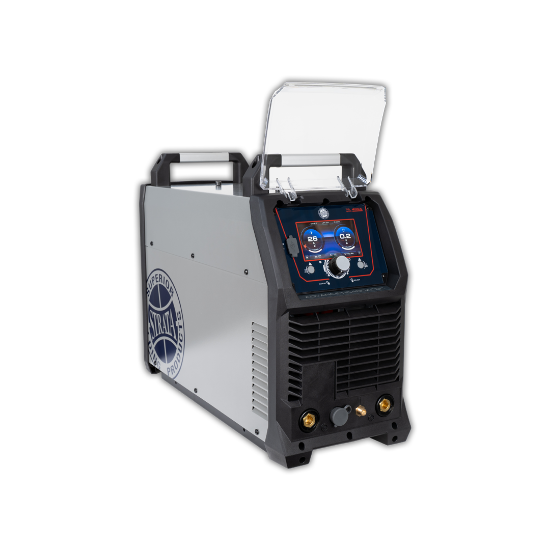

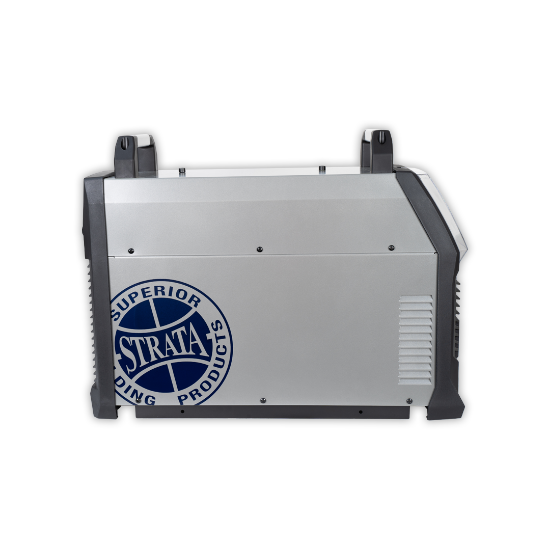

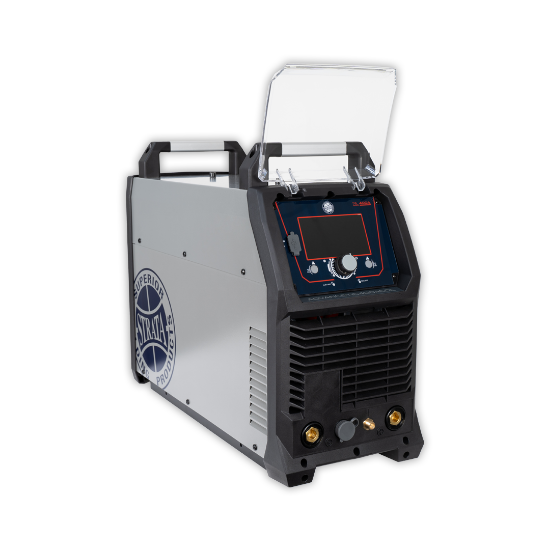

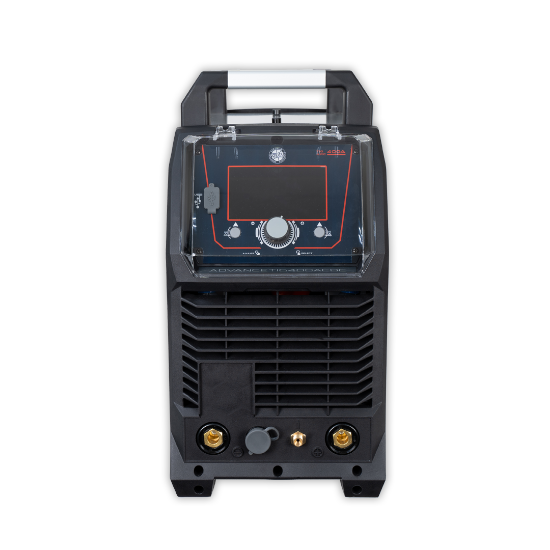

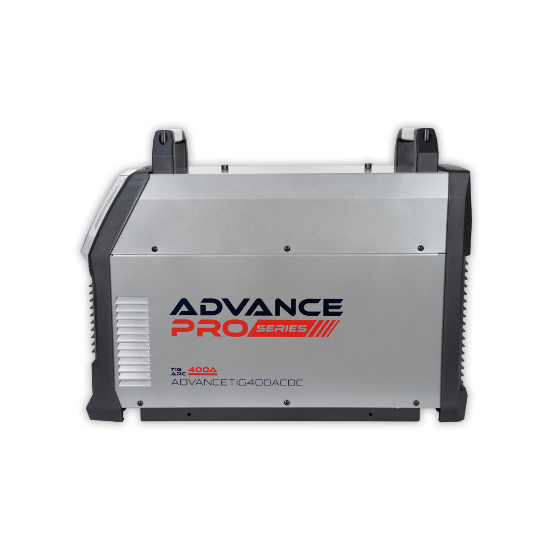

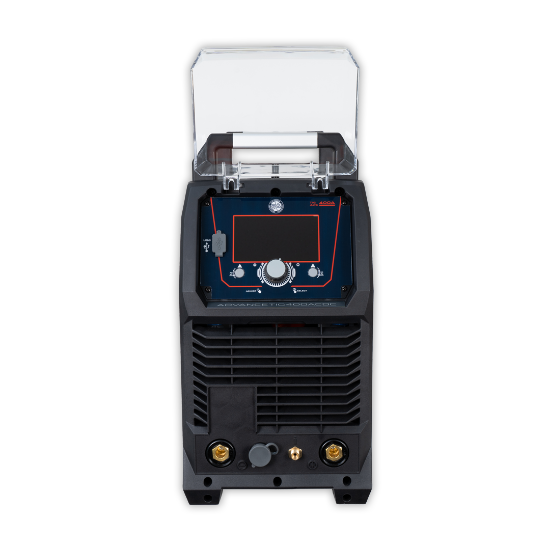

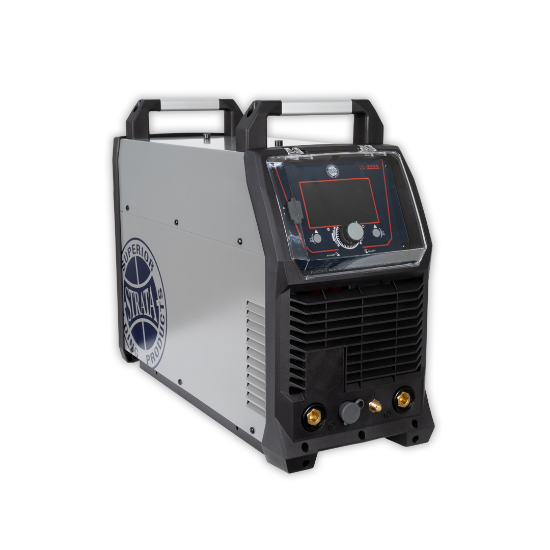

AdvanceTig400ACDC

400A Three-Phase Synergic AC/DC Pulse TIG/ARC PFC Inverter Welder

Meet the ultimate welding solution: the AdvanceTig400ACDC. With a formidable 400A output and three-phase power, this machine is designed for high-demand environments. Its Synergic control system and full-color LCD make setting adjustments simple and precise, while the integrated heavy-duty trolley option offers mobility in the workshop. Perfect for those who demand reliability, versatility, and performance at the highest levels.

Also available in a pack version with industrial trolley & water cooler, see AdvanceTig400ACDC Pack

Max Output (Tig/Arc) - 400A

Max Electrode Size - 4.0mm

Input Power Supply - 400V Three Phase 32A

  • IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle

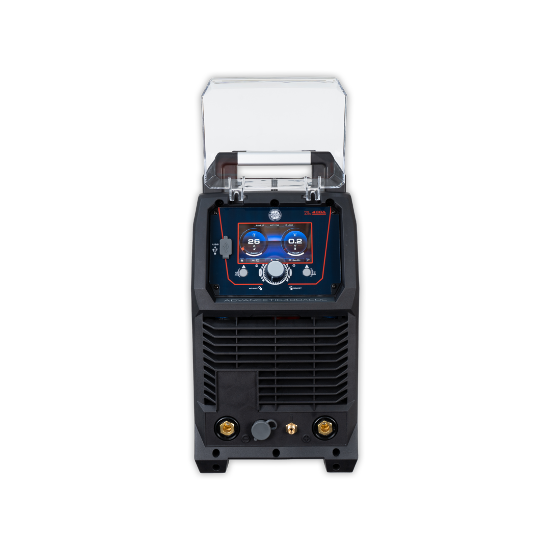

  • Full Colour LCD Control Screen - Intuitive and clear visibility and setting of control parameters
  • TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type
  • Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
  • 20 Memory Settings - Ability to quickly save and recall control settings for specific jobs
  • AC Sine, Square, Triangle & Mixed AC Wave Options - Ultimate control for every AC tig welding application
  • AC/DC Mix & Enhanced Fusion Feature - Faster AC TIG welding speeds
  • Modular integrated water cooler option - Easy connection of water-cooled torch with low coolant torch protection function
  • Integrated Heavy Duty Industrial Trolley Option - Easy to move around the workshop environment
  • Digital Microprocessor Control System - Accurate and reliable setting of control parameters
  • Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
  • 2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
  • Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
  • Wired & Wireless Foot Pedal Control Option (foot control optional extra)
  • Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
  • Spot Welding Mode - Special feature for welding very thin material without heat distortion
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Power Source Wind Tunnel Cooling Design - Protection against environmental contamination
  • MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
  • Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
  • Production tested with 550V - Extreme stress testing in production for rugged reliability.
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

Meet the ultimate welding solution: the AdvanceTig400ACDC. With a formidable 400A output and three-phase power, this machine is designed for high-demand environments. Its Synergic control system and full-color LCD make setting adjustments simple and precise, while the integrated heavy-duty trolley option offers mobility in the workshop. Perfect for those who demand reliability, versatility, and performance at the highest levels.

Also available in a pack version with industrial trolley & water cooler, see AdvanceTig400ACDC Pack

Max Output (Tig/Arc) - 400A

Max Electrode Size - 4.0mm

Input Power Supply - 400V Three Phase 32A

  • IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle
  • Full Colour LCD Control Screen - Intuitive and clear visibility and setting of control parameters
  • TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type
  • Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
  • 20 Memory Settings - Ability to quickly save and recall control settings for specific jobs
  • AC Sine, Square, Triangle & Mixed AC Wave Options - Ultimate control for every AC tig welding application
  • AC/DC Mix & Enhanced Fusion Feature - Faster AC TIG welding speeds
  • Modular integrated water cooler option - Easy connection of water-cooled torch with low coolant torch protection function
  • Integrated Heavy Duty Industrial Trolley Option - Easy to move around the workshop environment
  • Digital Microprocessor Control System - Accurate and reliable setting of control parameters
  • Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
  • 2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
  • Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
  • Wired & Wireless Foot Pedal Control Option (foot control optional extra)
  • Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
  • Spot Welding Mode - Special feature for welding very thin material without heat distortion
  • Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
  • Power Source Wind Tunnel Cooling Design - Protection against environmental contamination
  • MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
  • Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
  • Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
  • Production tested with 550V - Extreme stress testing in production for rugged reliability.
  • Generator Friendly - Designed to work with generator power supply and protect from power surges.
  • Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
  • Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine
Attribute nameAttribute value
strata
Dimensions640 x 250 x 500mm
Weight27kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Input Power Tolerance+/-10%
Maximum Input Current36.5A
Generator Capacity25KVA
MMA Current Output10-400A
MMA O/C Voltage67V
MMA Duty Cycle400A @ 60%, 310A @ 100%
AC/DC TIG Current Output10-400A
AC TIG Duty Cycle400A @ 60%, 310A @ 100%
TIG Upslope/Down Slope Adjustment 0-10S
TIG Gas Post Flow/Pre Flow Adjustment0-2/0-10S
TIG Pulse Frequency 0.5 - 999Hz
TIG Pulse Width Range5-95%
AC TIG WaveformSquare, Sine, Triangle, Multi-Wave
Insulation ClassIP23
AC Frequency Adjustment 50-250Hz
DC TIG Duty Cycle400A @ 60%, 310A @ 100%
Power Efficiency85%
Power Factor0.7
StandardsAS/ IEC60974-1:2012
Warranty48 Months
